Air Temperature, Turn Signal and Driver Information Center

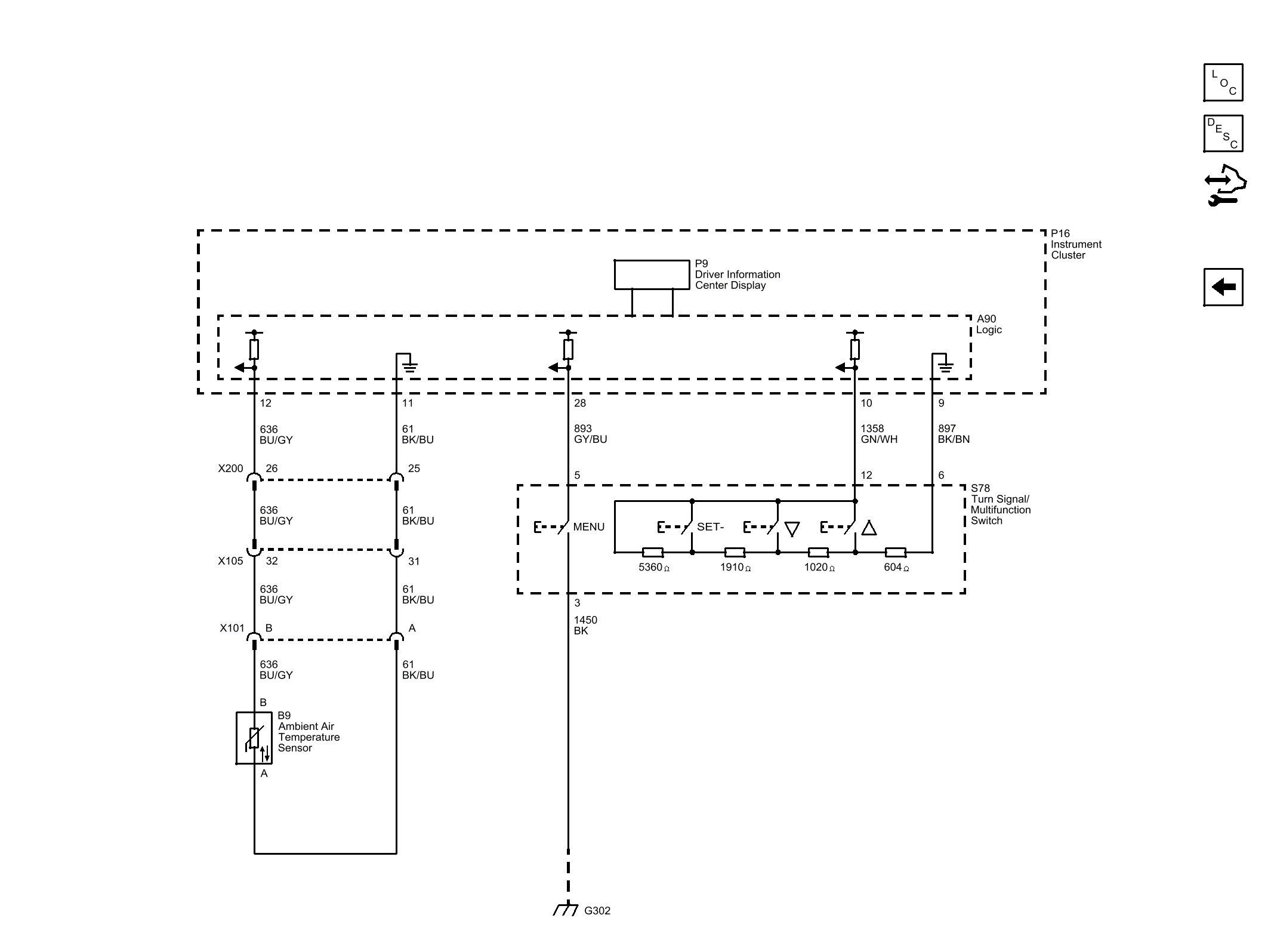

Fig 1: Air Temperature, Turn Signal and Driver Information Center

GM3631371

Courtesy of GENERAL MOTORS COMPANY
