Steering Column Upper Trim Cover Replacement (Encore)

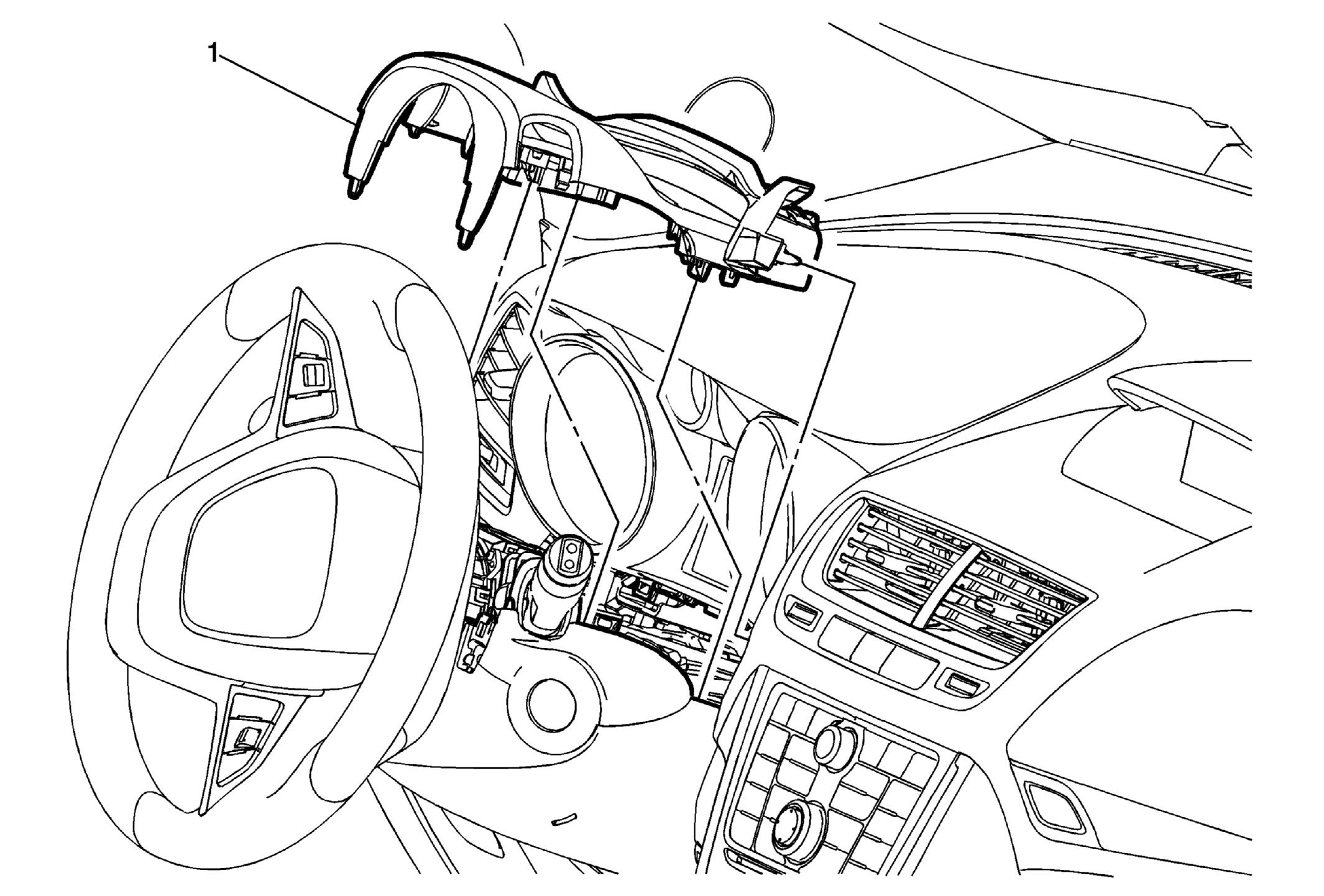

Fig 1: Steering Column Upper Trim Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Steering Column Upper Trim Cover Procedure Unclip the steering column upper trim cover from the steering column lower trim cover. Disengage the steering column upper trim cover flexible part from instrument cluster. Carefully pull plastic part rearward from instrument cluster.
