Ignition and Start Switch Replacement (Encore)

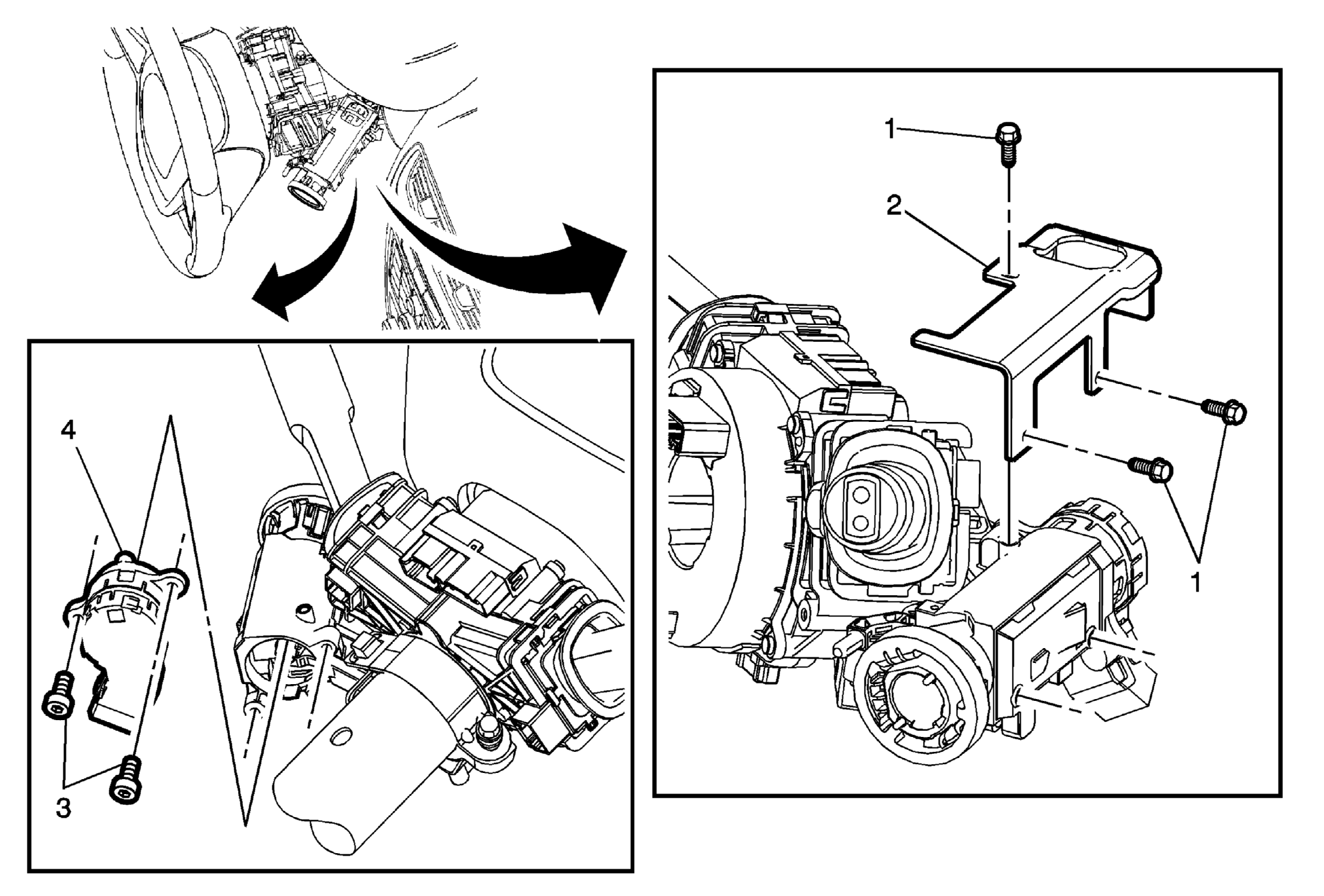

Fig 1: Ignition And Start Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . Remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement (Encore) .
1	Theft Deterrent Plate Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . NOTE: Some markets may not be equipped with a theft deterrent plate.
2	Theft Deterrent Plate NOTE: Some markets may not be equipped with a theft deterrent plate.
3	Ignition and Start Switch Fastener (Qty: 2)
4	Ignition and Start Switch Procedure Disconnect the ignition and start switch electrical connector.
