Instrument Panel Lower Center Trim Plate Applique Replacement (Encore)

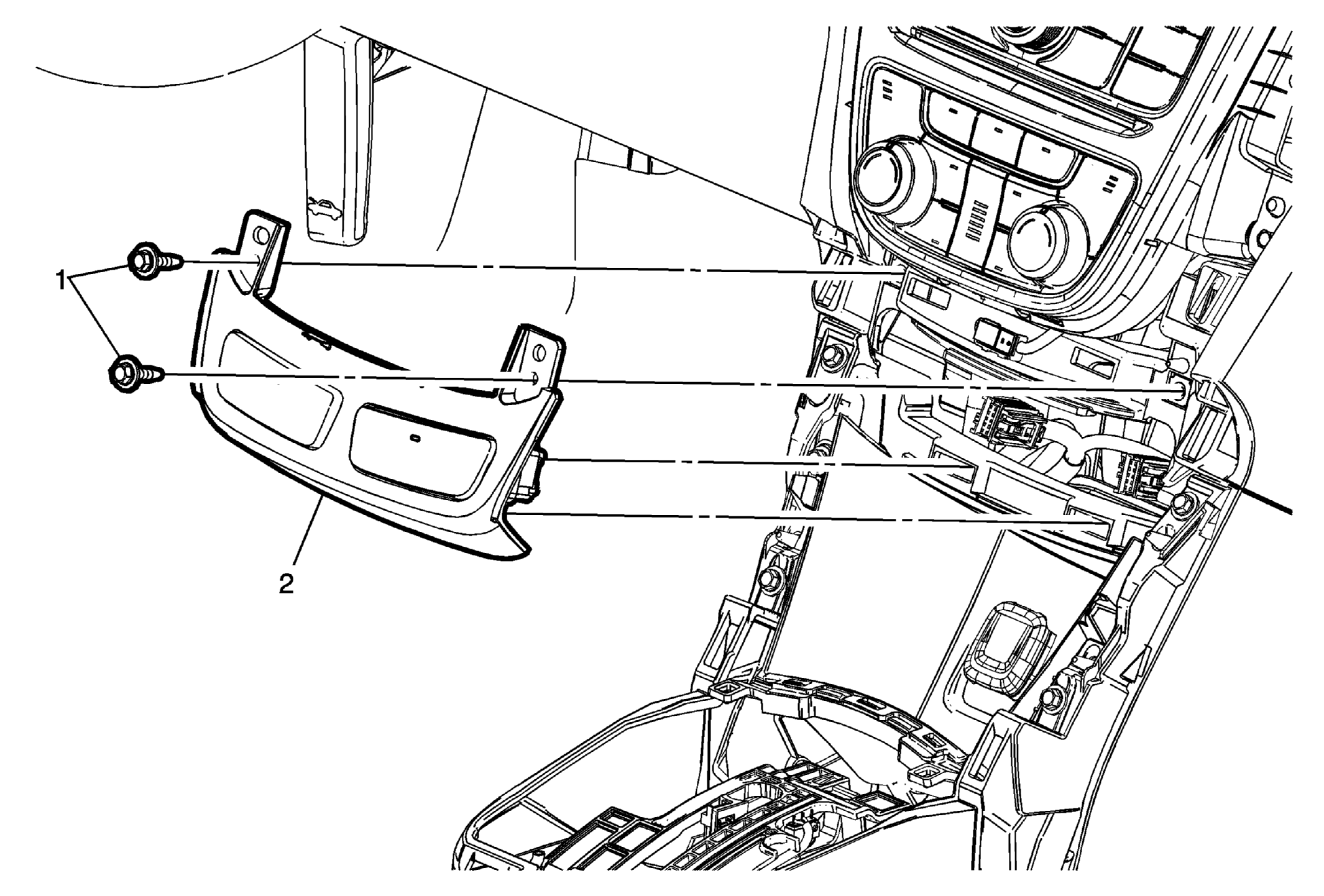

Fig 1: Instrument Panel Lower Center Trim Plate Applique

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement (Encore) . Remove the instrument panel trim plate. Refer to Instrument Panel Trim Plate Replacement (Encore) .
1	Instrument Panel Lower Center Trim Plate Applique Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Instrument Panel Lower Center Trim Plate Applique Procedures Use a flat bladed plastic trim tool to aid in the removal of the trim plate from the instrument panel assembly. Disconnect the electrical connection. Transfer components as necessary.

Callout

Component Name

Preliminary Procedures

Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement (Encore) .
Remove the instrument panel trim plate. Refer to Instrument Panel Trim Plate Replacement (Encore) .

Instrument Panel Lower Center Trim Plate Applique Fasteners (Qty: 2)

CAUTION:

Instrument Panel Lower Center Trim Plate Applique

Procedures

Use a flat bladed plastic trim tool to aid in the removal of the trim plate from the instrument panel assembly.
Disconnect the electrical connection.
Transfer components as necessary.
