Instrument Cluster Wiring Schematics (Trax): Indicators

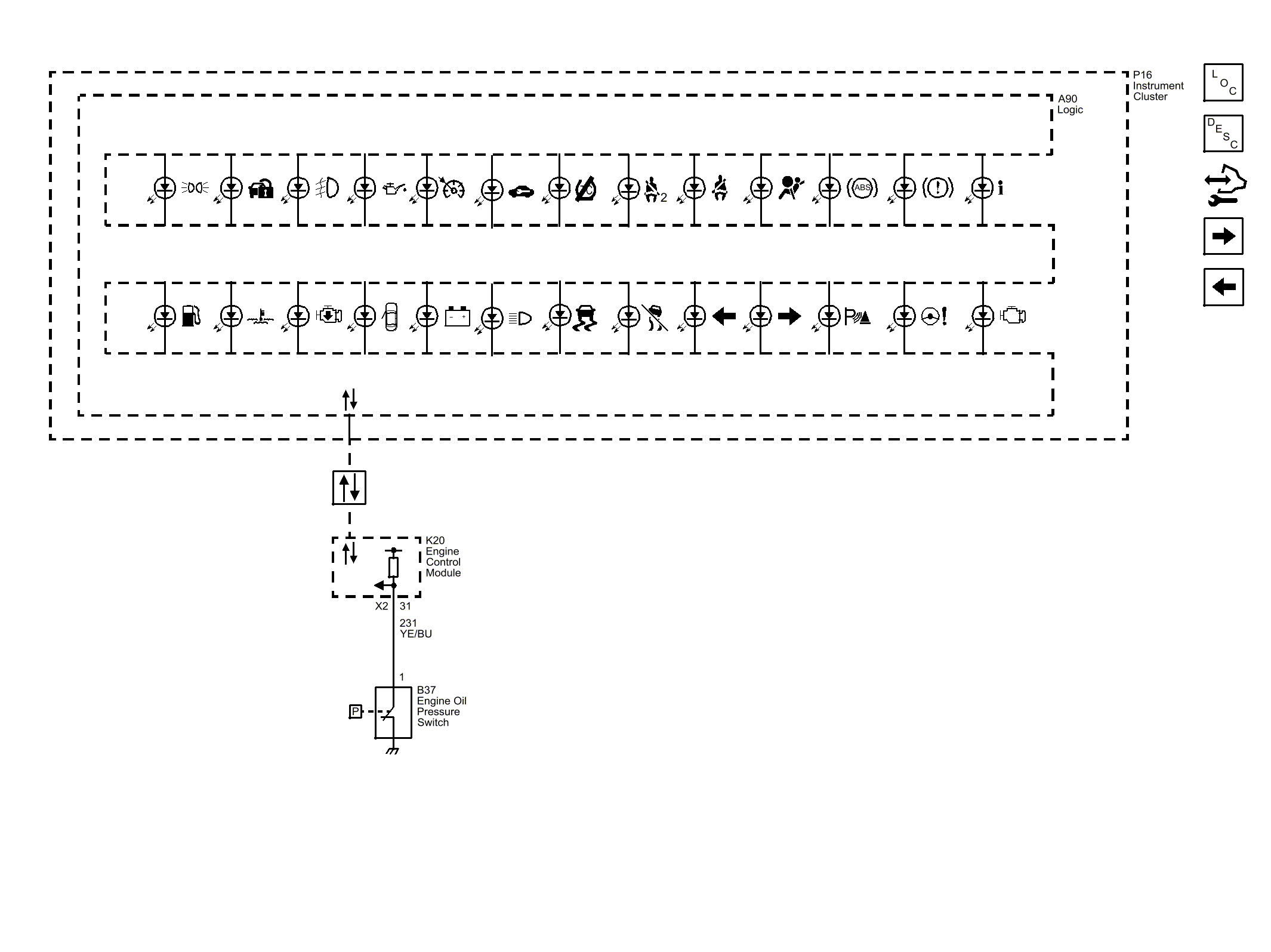

Fig 1: Indicators

GM3631368

Courtesy of GENERAL MOTORS COMPANY
