Transmission Control Replacement

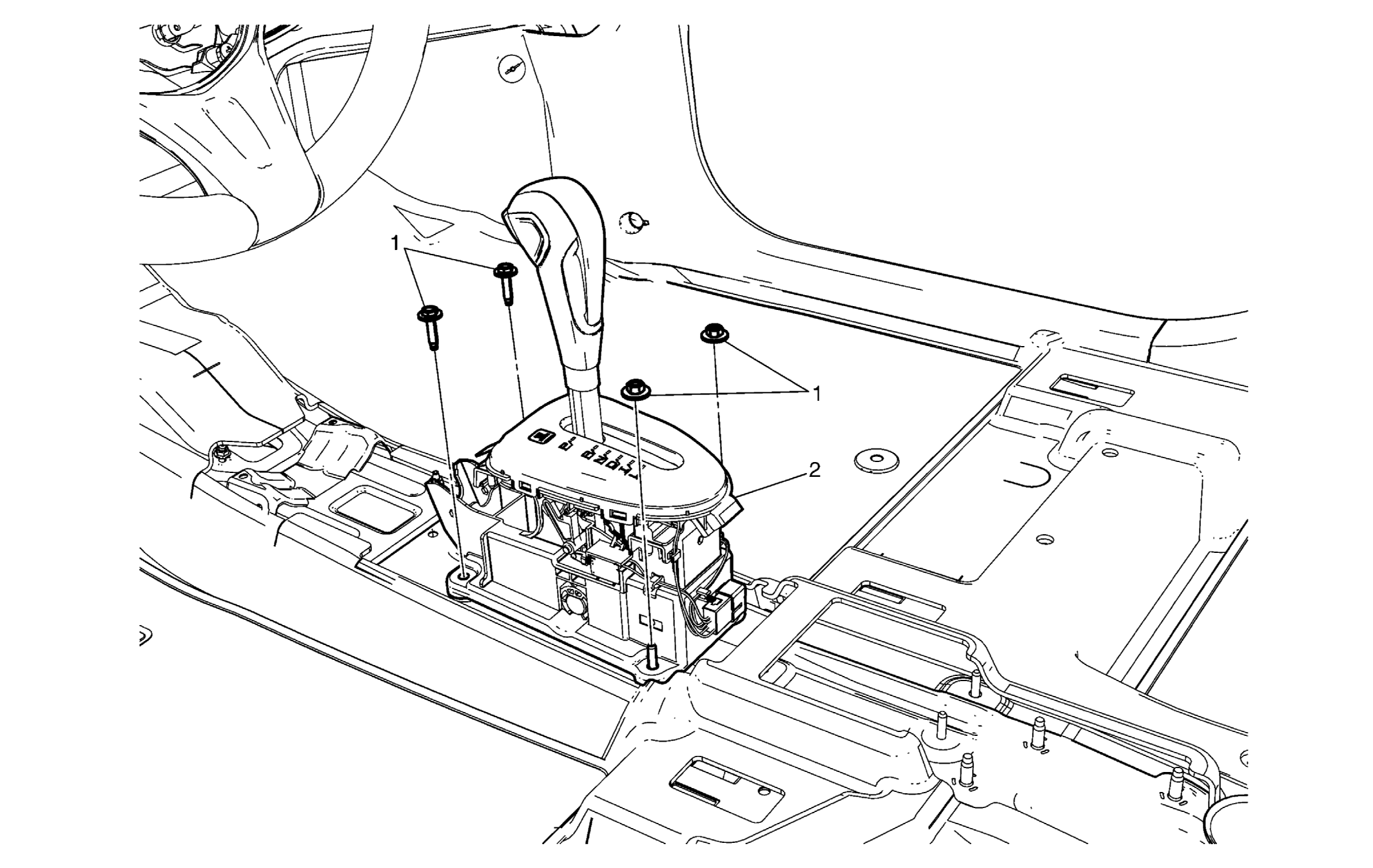

Fig 1: Transmission Control

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove floor console. Refer to Front Floor Console Replacement .
1	Transmission Control Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Procedure Remove the clips on the wiring harness and disconnect the shift control electrical connector. Disconnect the shift control cable. Tighten 9 (80 lb in)
2	Transmission Control

Callout

Component Name

Preliminary Procedure
Remove floor console. Refer to Front Floor Console Replacement .

Transmission Control Fastener (Qty: 4)

CAUTION:

Procedure

Remove the clips on the wiring harness and disconnect the shift control electrical connector.
Disconnect the shift control cable.

Tighten
9 (80 lb in)

Transmission Control
