Steering Wheel Airbag Coil Replacement

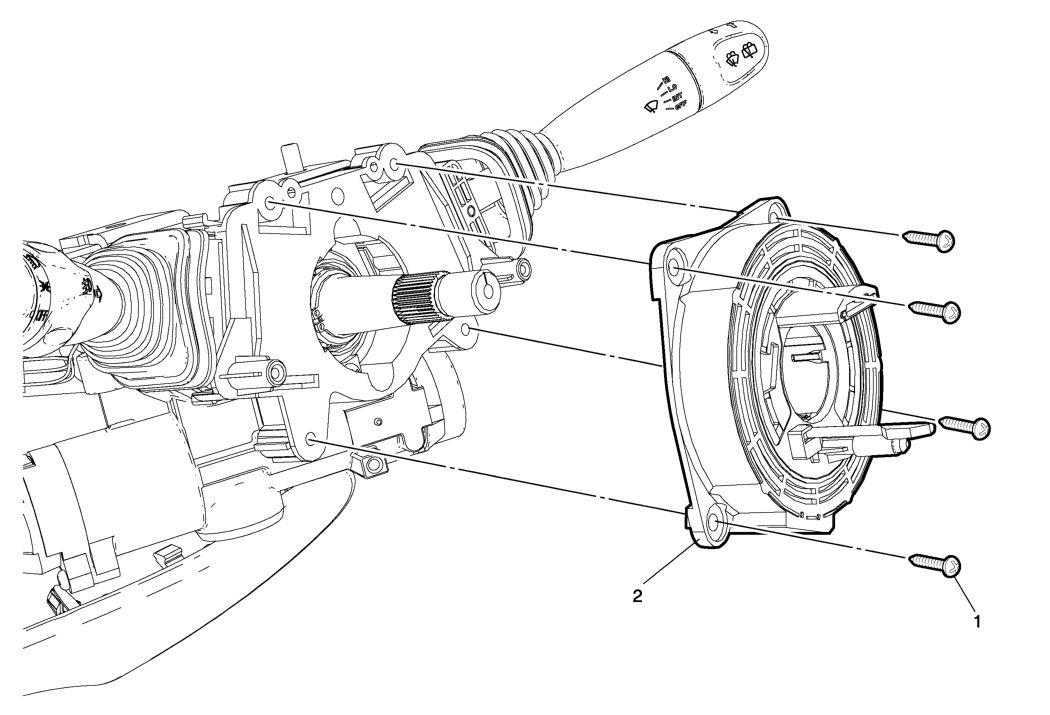

Fig 1: Steering Wheel Airbag Coil

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the steering column upper trim cover. Refer to Steering Column Lower Trim Cover Replacement . Remove the steering column lower trim cover. Refer to Steering Column Upper Trim Cover Replacement . Remove the steering wheel. Refer to Steering Wheel Replacement .
1	Steering Wheel Inflatable Restraint Module Coil Screw Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
2	Steering Wheel Inflatable Restraint Module Coil Assembly Procedure Disconnect any electrical connectors as needed. Do not remove the centering tab from a new steering wheel inflatable restraint module coil until it has been installed or re-centering will be required. If re-centering of the steering wheel inflatable restraint module coil is needed then refer to Steering Wheel Airbag Coil Replacement .

Callout

Component Name

Preliminary Procedures

Remove the steering column upper trim cover. Refer to Steering Column Lower Trim Cover Replacement .
Remove the steering column lower trim cover. Refer to Steering Column Upper Trim Cover Replacement .
Remove the steering wheel. Refer to Steering Wheel Replacement .

Steering Wheel Inflatable Restraint Module Coil Screw Bolt (Qty: 4)

CAUTION:

Tighten
1.5 N.m (13 lb in)

Steering Wheel Inflatable Restraint Module Coil Assembly
Procedure
Disconnect any electrical connectors as needed.

Do not remove the centering tab from a new steering wheel inflatable restraint module coil until it has been installed or re-centering will be required.
If re-centering of the steering wheel inflatable restraint module coil is needed then refer to Steering Wheel Airbag Coil Replacement .
