Rear Seat Outboard Seat Back Airbag Replacement

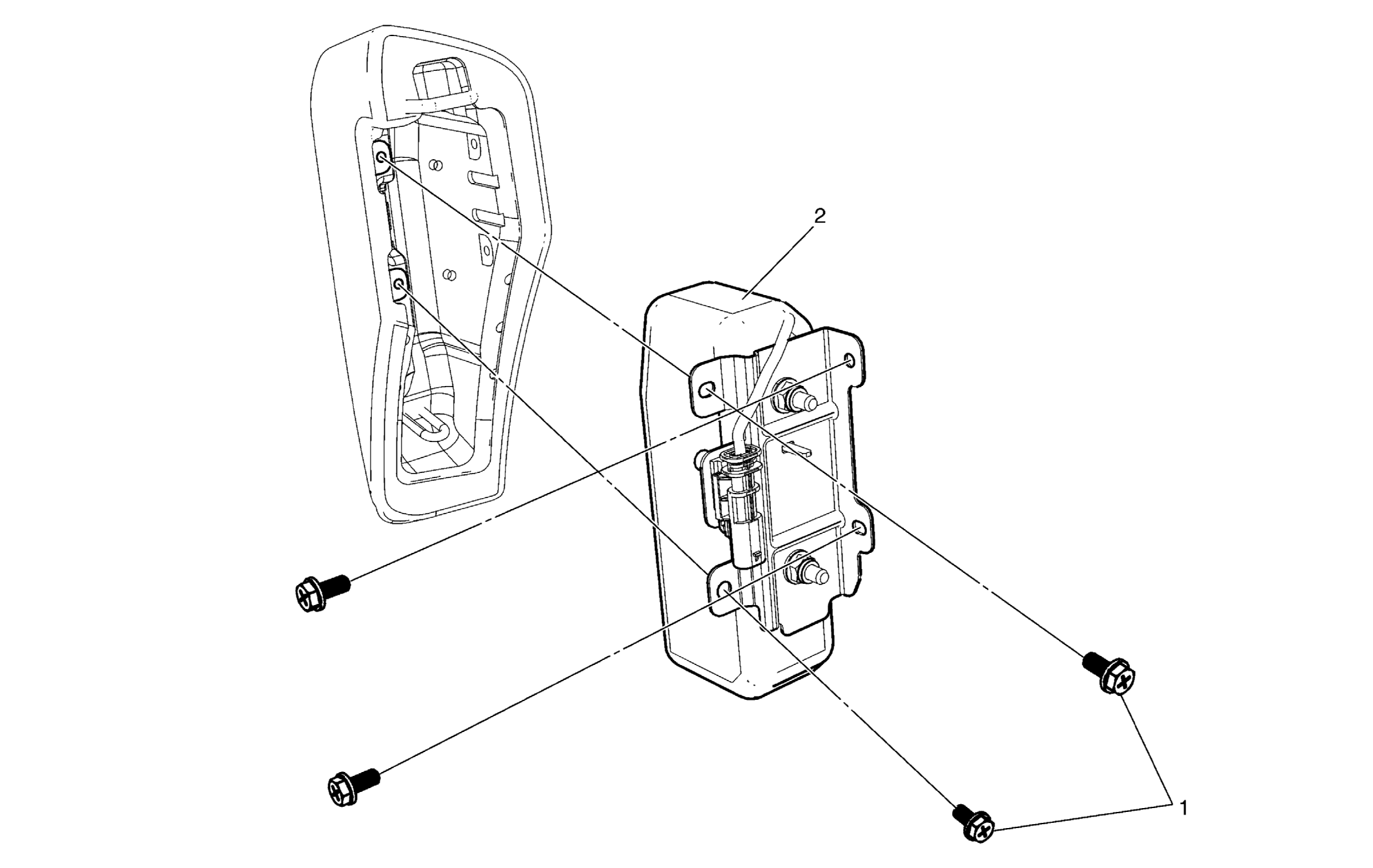

Fig 1: Rear Seat Outboard Seat Back Airbag
GM2754822Courtesy of GENERAL MOTORS COMPANY
Rear Seat Outboard Seat Back Airbag Replacement

Callout Component Name

Preliminary Procedure

  1. Disable the SIR system, if equipped. Refer to SIR Disabling and Enabling .
  2. Remove the rear seat back cushion bolster. Refer to Rear Seat Back Bolster Replacement .
1 Rear Seat Side Inflatable Restraint Module Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
3.5 (31 lb in)
2 Rear Seat Side Inflatable Restraint Module

Procedure

  1. Remove the connector position assurance (CPA) from the module electrical connector.
  2. Disconnect the electrical connector.
