Instrument Cluster Replacement

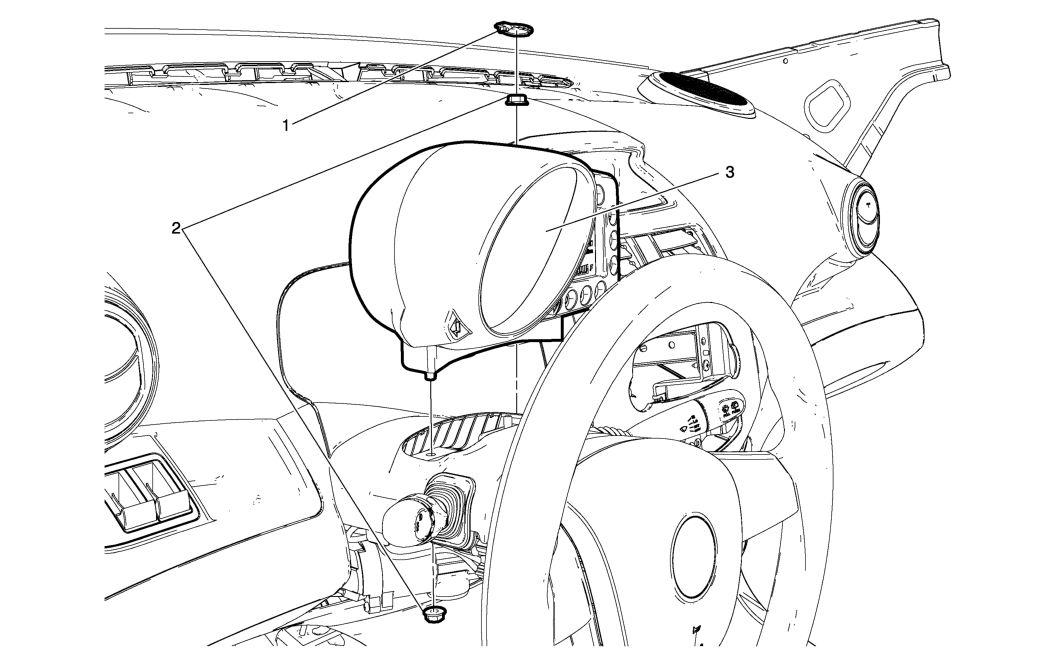

Fig 1: Instrument Cluster
GM3352701Courtesy of GENERAL MOTORS COMPANY
Instrument Cluster Replacement

Callout Component Name
Preliminary Procedure
Remove steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement .
1 Instrument Cluster Nut Cover
2 Instrument Cluster Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
10 (89 lb in)
3 Instrument Cluster Assembly

Procedure

  1. Remove the cluster rear cover.
  2. Disconnect electrical components.
  3. After repairs, refer to Control Module References .
