Windshield Garnish Molding Replacement

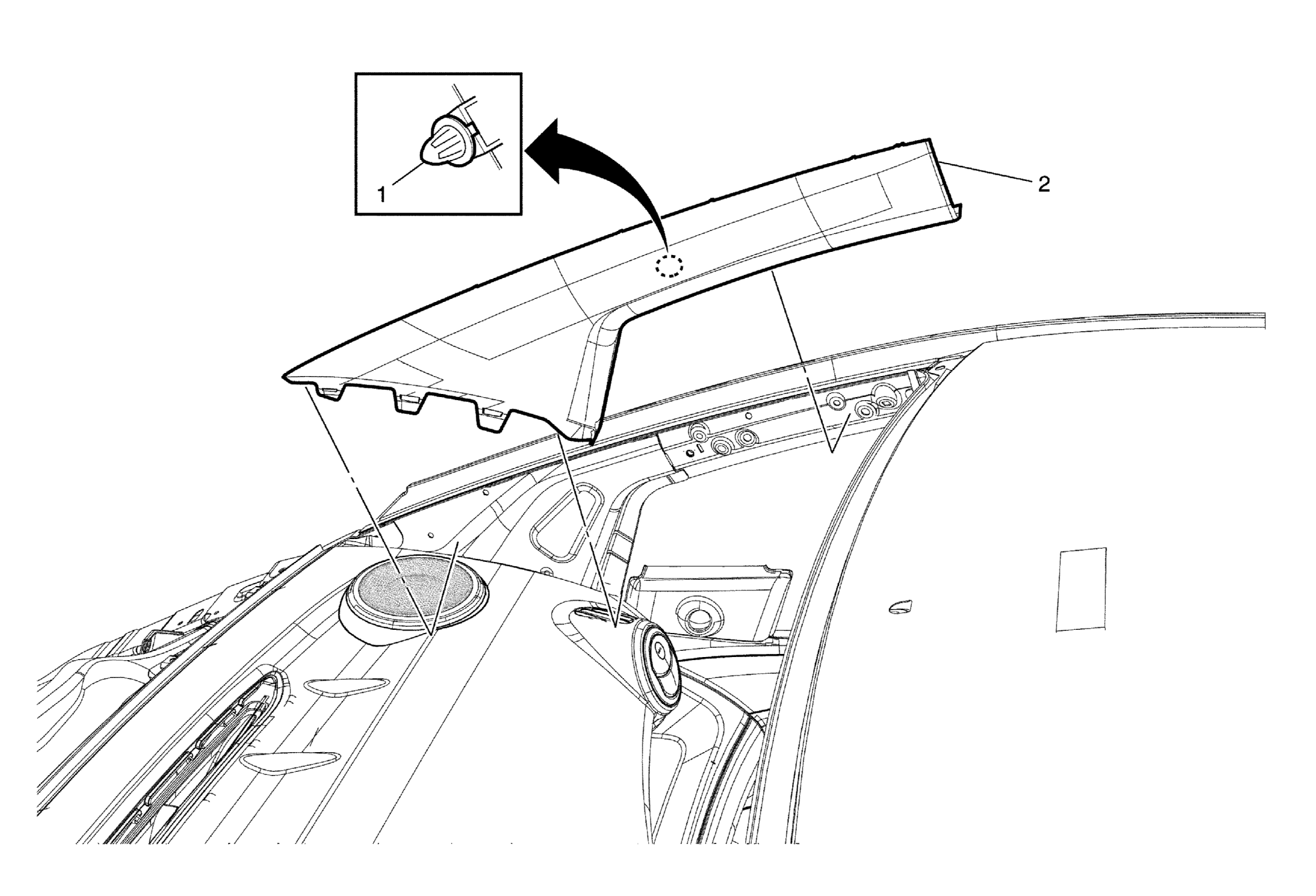

Fig 1: Windshield Garnish Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling .
1	Windshield Garnish Molding Clip (Qty: 1) Procedure Tabs must be installed prior to retainers. Tabs to be fully seated in the instrument panel (I/P) trim panel retainer and valance panel. Disconnect the electrical connectors. Ensure the tether is reattached when installed.
2	Windshield Garnish Molding

Callout

Component Name

Preliminary Procedure
Disable the SIR system. Refer to SIR Disabling and Enabling .

Windshield Garnish Molding Clip (Qty: 1)

Procedure

Tabs must be installed prior to retainers.
Tabs to be fully seated in the instrument panel (I/P) trim panel retainer and valance panel.
Disconnect the electrical connectors.
Ensure the tether is reattached when installed.

Windshield Garnish Molding
