Assist Handle Replacement

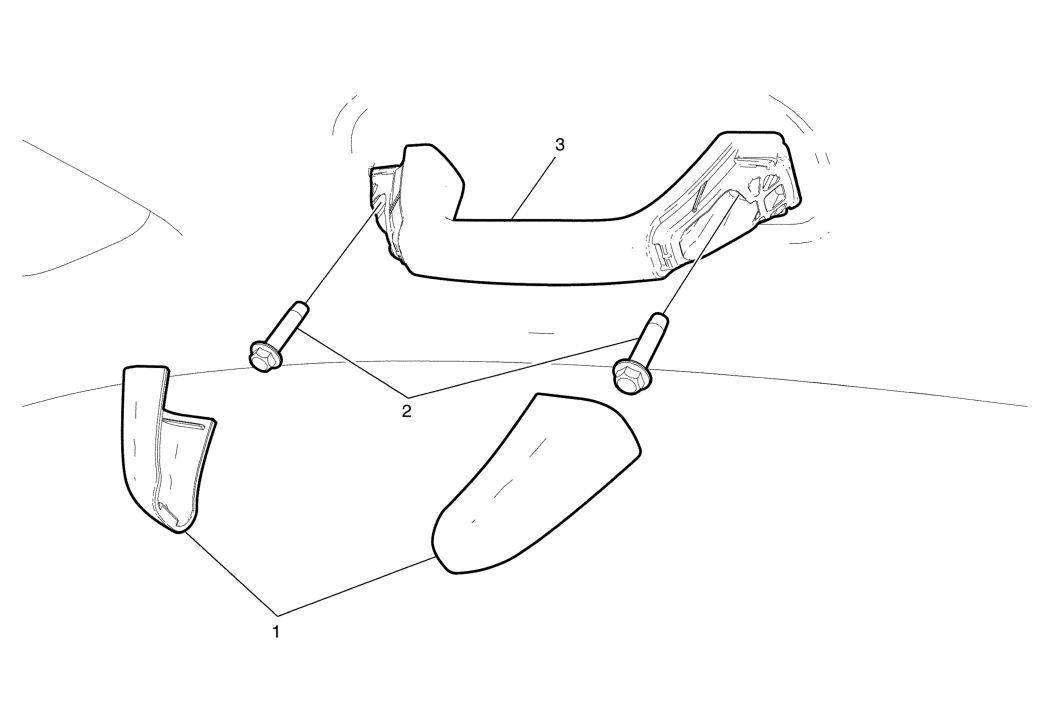

Fig 1: Assist Handle Assembly
GM2309227Courtesy of GENERAL MOTORS COMPANY
Assist Handle Replacement

Callout Component Name
1 Assist Handle Bolt Cover
2 Assist Handle Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
5 N.m (44 lb in)
3 Assist Handle Assembly
