Hood Primary and Secondary Latch Replacement
Hood Primary and Secondary Latch Replacement

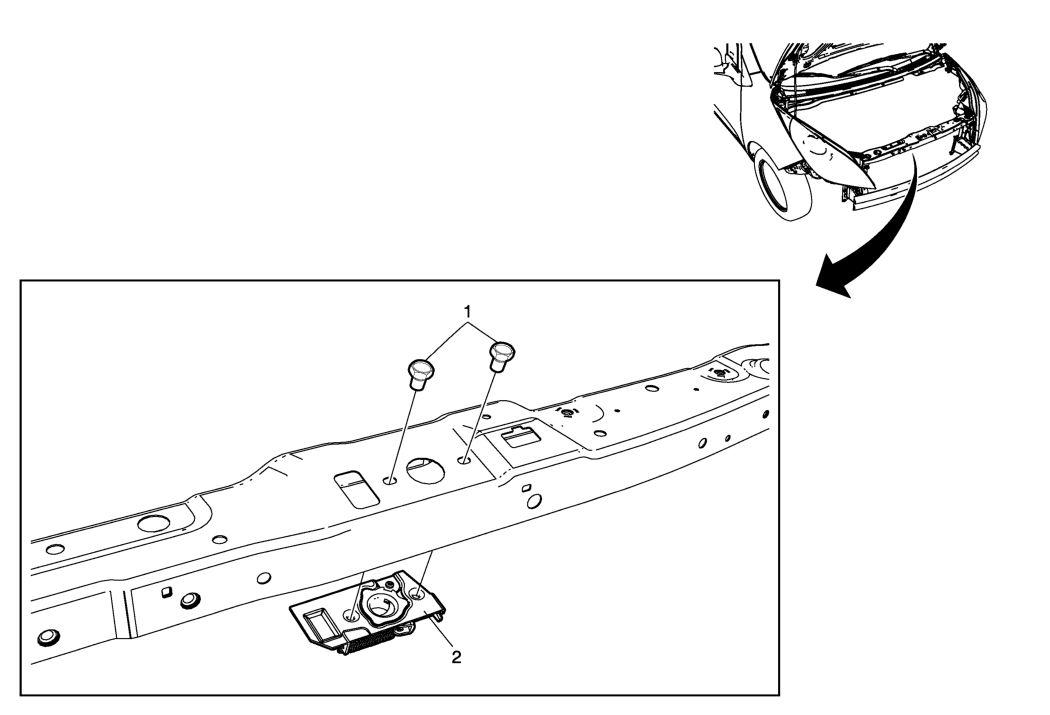

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove air cleaner assembly. Refer to Air Cleaner Assembly Replacement . |
|
| 1 | Hood Primary and Secondary Latch Retainer Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 8.5 N.m (75 lb in) |
| 2 | Hood Primary and Secondary Latch Procedure To release the hood primary and secondary latch unhook the hood primary latch release cable. |
