Parking and Turn Signal Lamp Bulb Replacement
Parking and Turn Signal Lamp Bulb Replacement

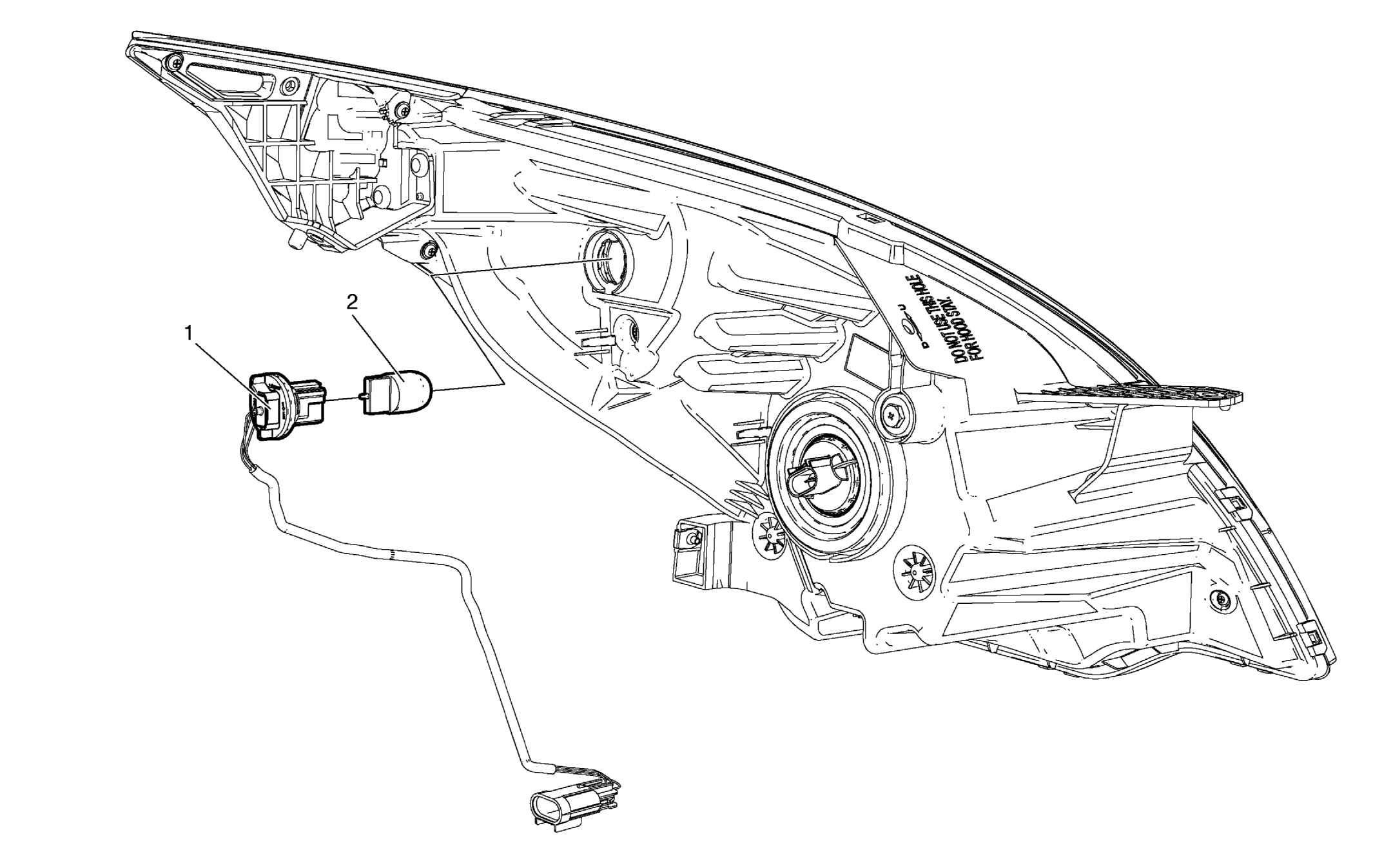

| Callout | Component Name |
|---|---|
| 1 | Park/Turn Signal Bulb Socket
WARNING:
Refer to Halogen Bulb Warning .
NOTE:
Rotate counterclockwise and remove the socket from the headlamp assembly. |
| 2 | Park/Turn Signal Bulb Procedure Pull the bulb straight from the lamp harness socket. |
