High Mount Stop Lamp Replacement

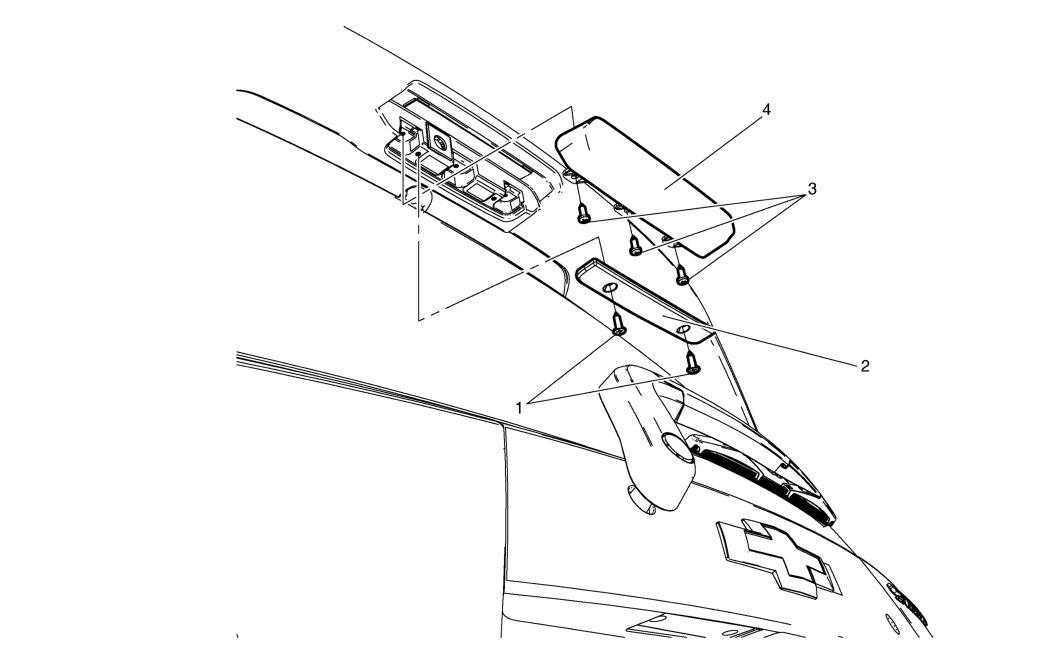

Courtesy of GENERAL MOTORS COMPANY High Mount Stop Lamp Replacement
| Callout |
Component Name |
| 1 |
High Mount Stop Lamp Cover Screw (Qty: 2) |
| 2 |
High Mount Stop Lamp Cover |
| 3 |
High Mount Stop Lamp Screw (Qty: 3) |
| 4 |
High Mount Stop Lamp Assembly
Procedure
Disconnect the electrical connector at the high mount stop lamp. |
