Power, Ground, Serial Data and Gauges Wiring Schematics

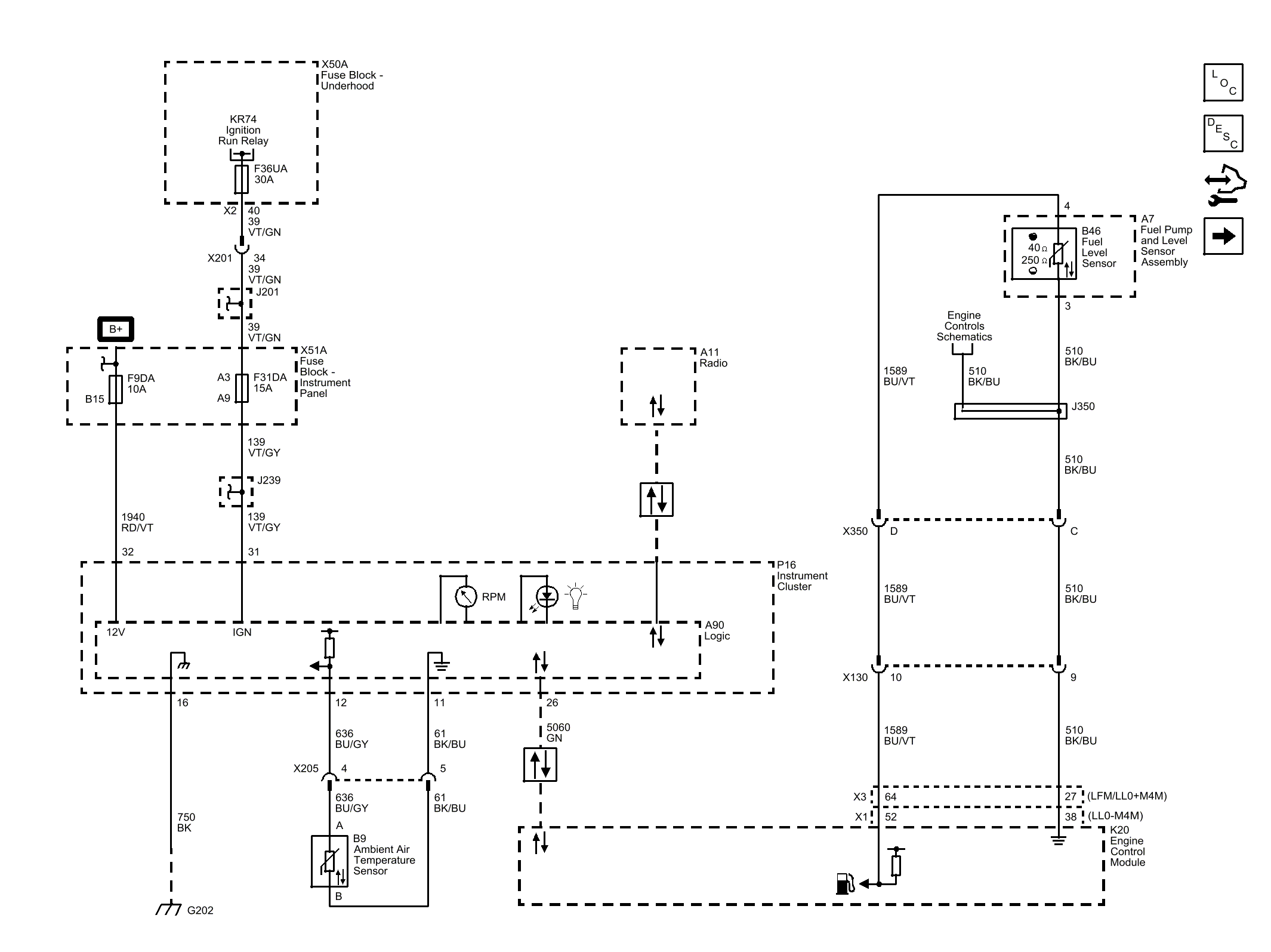

Fig 1: Power, Ground, Serial Data and Gauges Wiring Schematic

GM3273714

Courtesy of GENERAL MOTORS COMPANY
