Driver Information Center Wiring Schematics

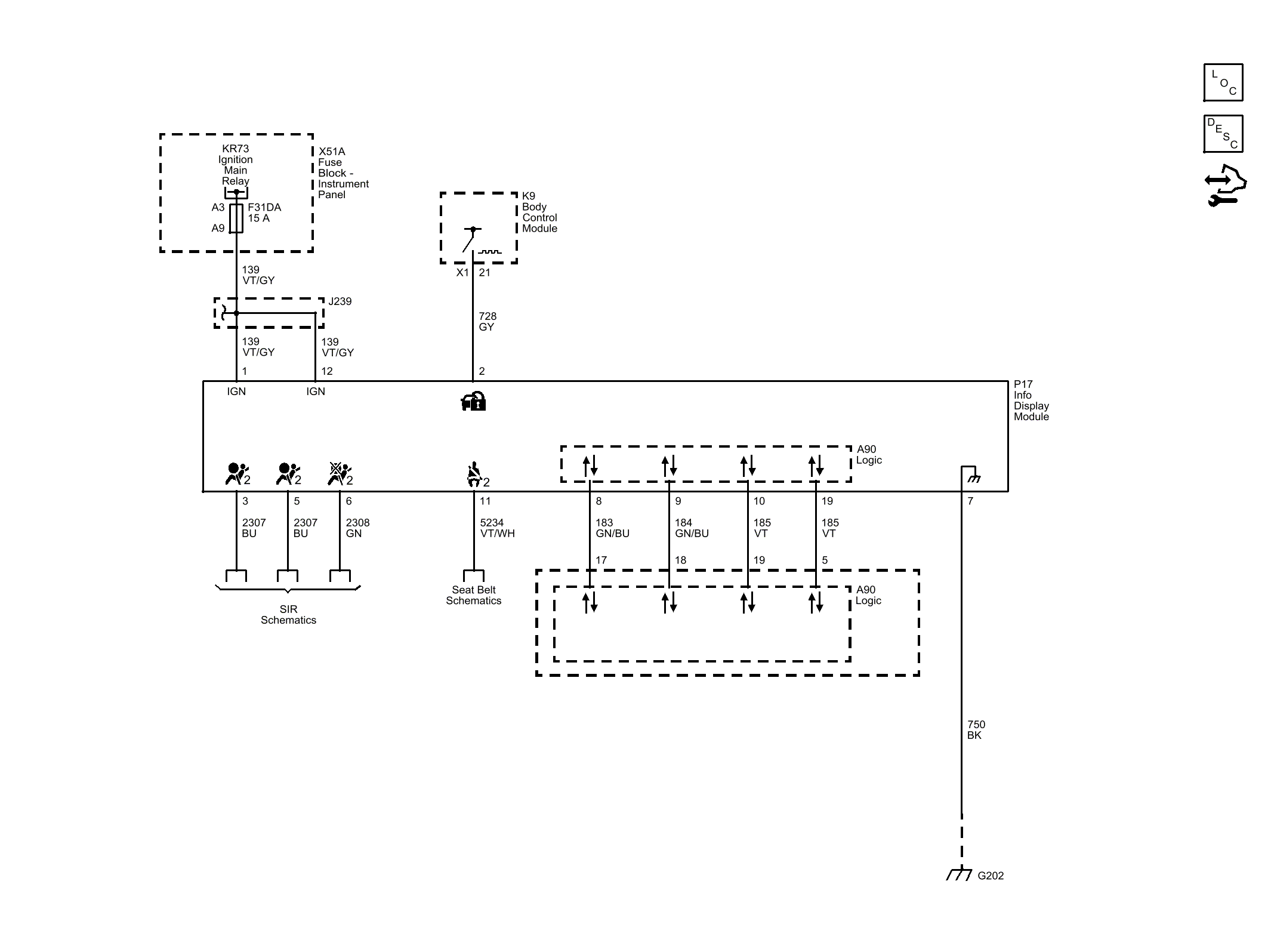

Fig 1: Driver Information Center Wiring Schematic

GM3273723

Courtesy of GENERAL MOTORS COMPANY
