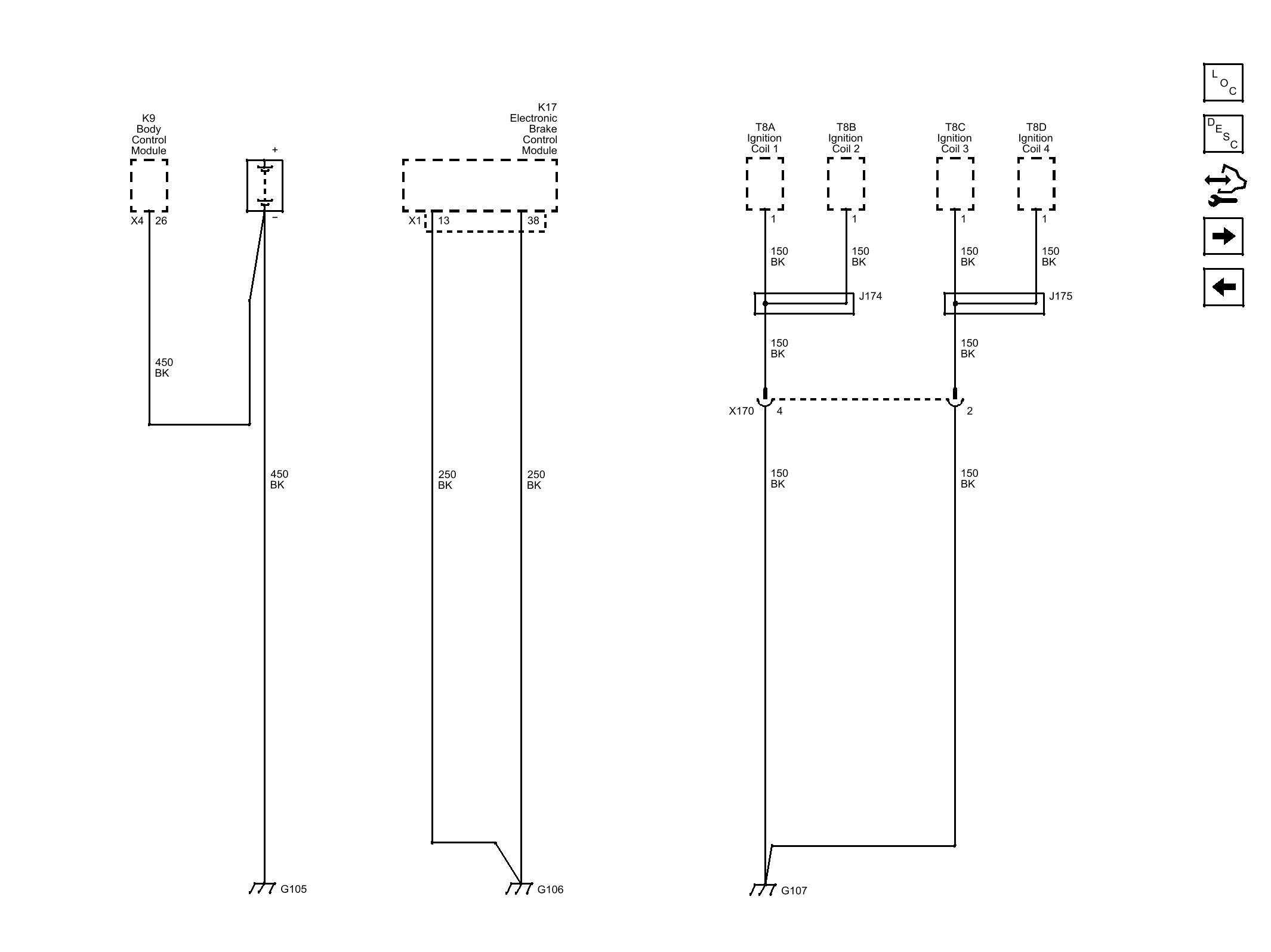

Home >> Chevrolet >> 2014 >> Spark LT, Standard Trans >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> Wiring Systems And Power Management - Wiring Schematics And Wiring Harness Routing Diagrams >> Wiring Schematics and Routing Diagrams >> Ground Distribution Wiring Schematics >> G105, G106 and G107 Wiring Schematics
