X700 Left Rear Door Harness to Body Harness

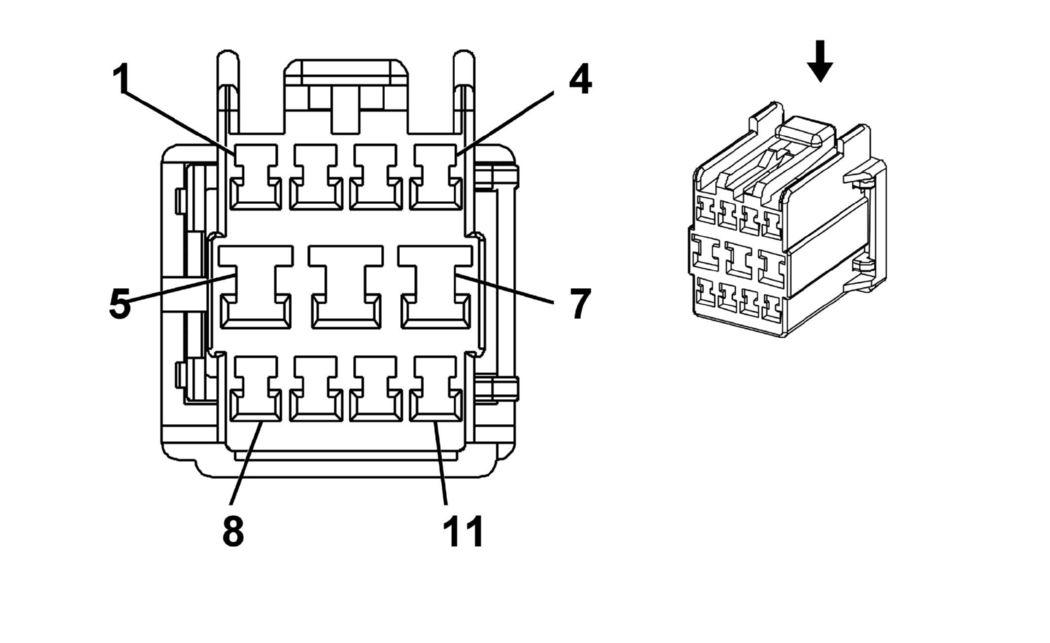

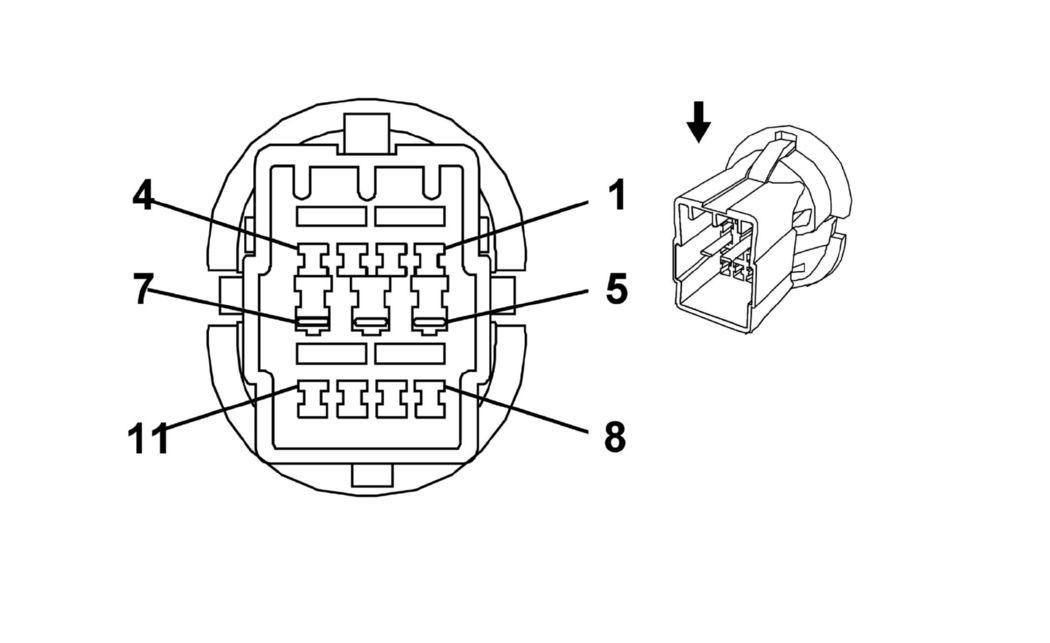

Connector Part Information Harness Type: Body OEM Connector: 1897699-5 Service Connector: 13584406 Description: 11-Way F	Connector Part Information Harness Type: Left Rear Door OEM Connector: 3-85216-5 Service Connector: Service by Harness - See Part Catalog Description: 11-Way F

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	Pending	Pending	Pending	Pending	Pending	Pending	Pending

X700 Left Rear Door Harness to Body Harness

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.5	GY	295	I	AU3	Door Lock Actuator Lock Control	1	0.5	GY	295	I	AU3
2	-	-	-	-	-	Not Used	2	-	-	-	-	-
3	0.5	BN/YE	294	I	AU3	Door Lock Actuator Unlock Control	3	0.5	BN/YE	294	I	AU3
4	-	-	-	-	-	Not Used	4	-	-	-	-	-
5	1.5	BU/WH	1307	I	AE3	Power Window Master Switch Lockout Signal	5	1.5	BU/WH	1307	I	AE3
6	1.5	GN/GY	1185	I	AE3	Power Window Switch Left Rear Up Signal	6	1.5	GN/GY	1185	I	AE3
7	1.5	BN/BU	1187	I	AE3	Power Window Switch Left Rear Down Signal	7	1.5	BN/BU	1187	I	AE3
8-11	-	-	-	-	-	Not Used	8-11	-	-	-	-	-
