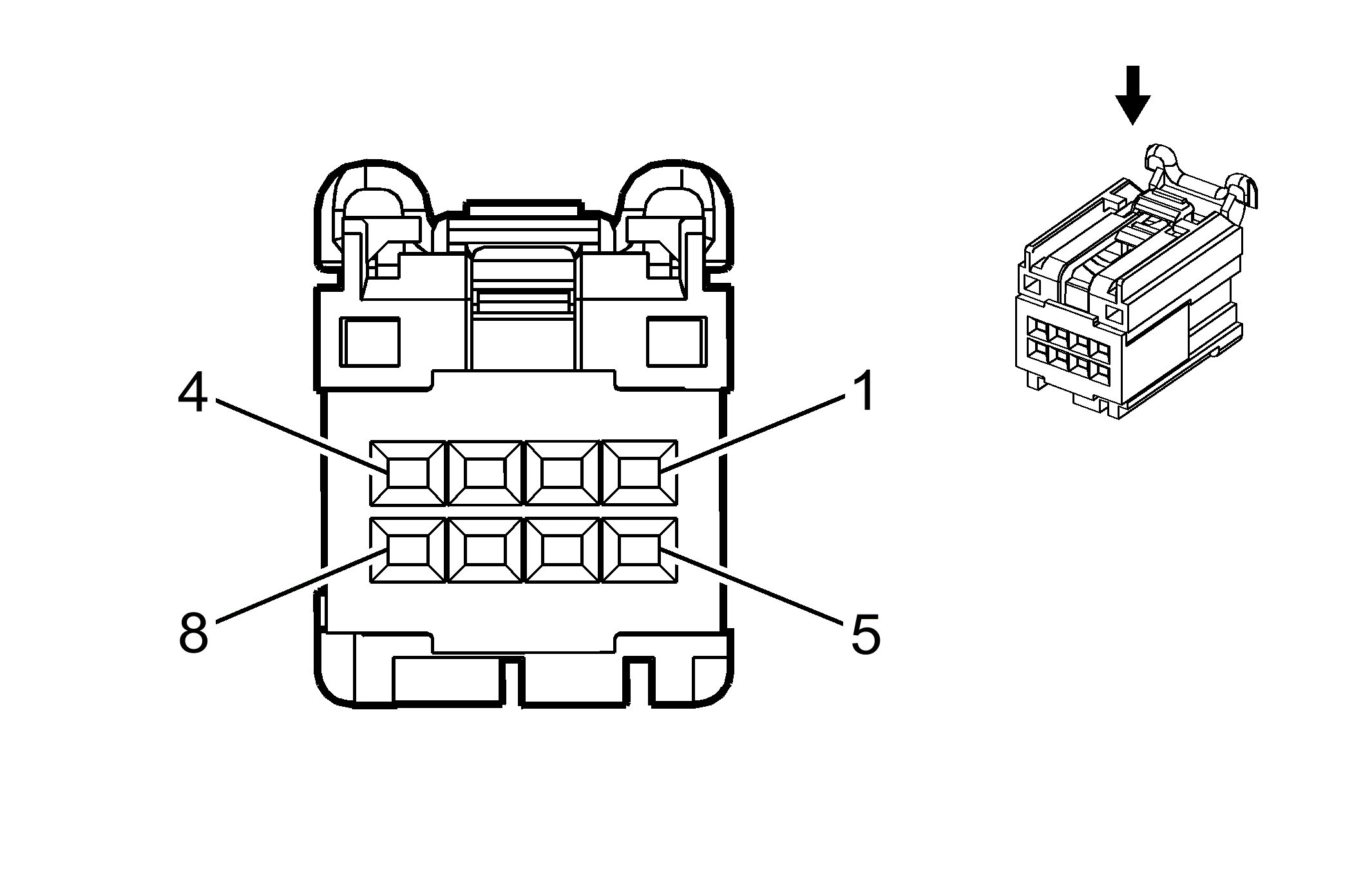

X85 Steering Wheel Air Bag Coil X2
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 1456987-4
- Service Connector: Not Available
- Description: 8-Way F 1.2 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-64B (L-BU) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
X85 Steering Wheel Air Bag Coil X2
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GN/WH |
3287 |
Horn Switch Signal |
I |
UC3K34 |
| 2 |
0.35 |
WH/RD |
1444 |
12 Volt Reference |
I |
UC3K34 |
| 3 |
0.35 |
GY |
1884 |
Cruise Control Set/Coast/Resume/Accelerate Switch Signal |
I |
UC3K34 |
| 4 |
0.35 |
YE |
6817 |
LED Backlight Dimming Control |
I |
UC3 |
| 5 |
0.35 |
WH/RD |
1444 |
12 Volt Reference |
I |
UC3K34 |
| 6 |
0.35 |
GN/WH |
6819 |
Steering Wheel Resistor Ladder Signal #2 |
I |
UC3K34 |
| 7 |
0.35 |
YE |
6817 |
LED Backlight Dimming Control |
I |
UC3K34 |
| 8 |
0.35 |
BK |
750 |
Ground |
I |
UC3 |
