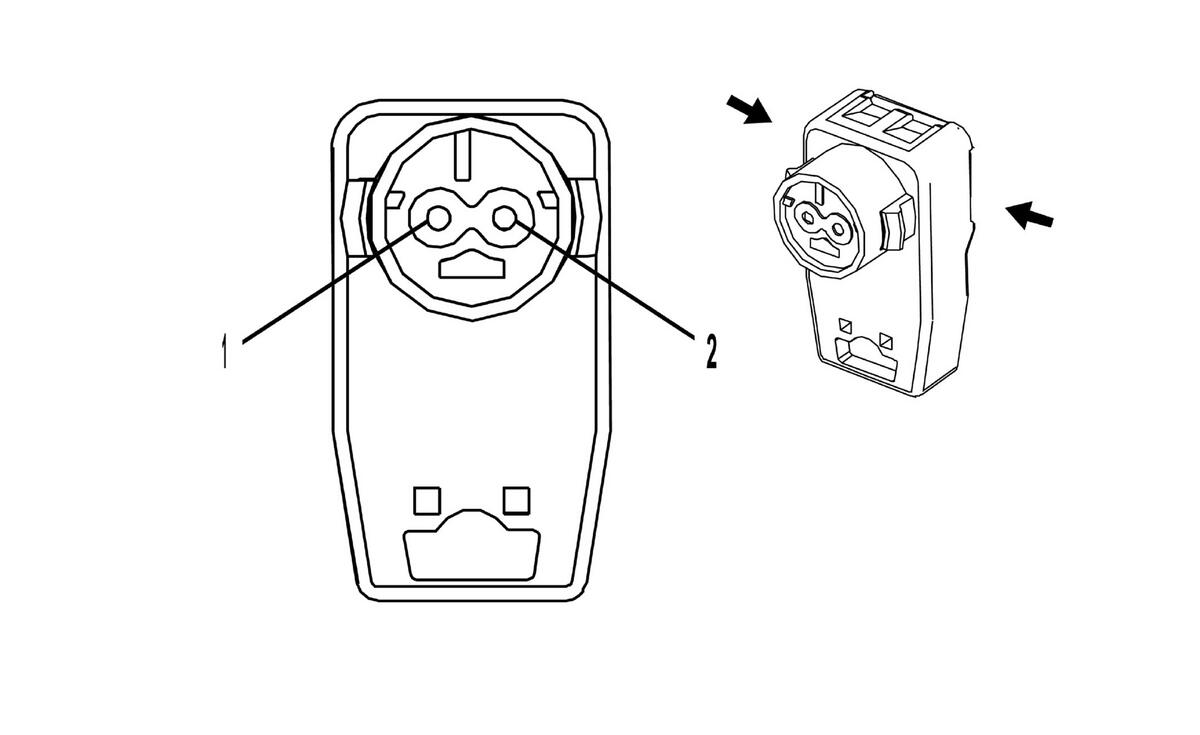

F107 Steering Wheel Air Bag X1
|
|
Connector Part Information
- Harness Type: Steering Wheel Air Bag Coil
- OEM connector: 19153417
- Service connector: Service by Component Assembly - See Part Catalog
- Description: 2-Way F (L-GN Body with YE Cover)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
F107 Steering Wheel Air Bag X1
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
TN |
3021 |
Steering Wheel Module Stage 1 High Control |
I |
- |
| 2 |
0.5 |
BN |
3020 |
Steering Wheel Module Stage 1 Low Control |
I |
- |
