Rear Seat Cushion Hinge Pivot Replacement

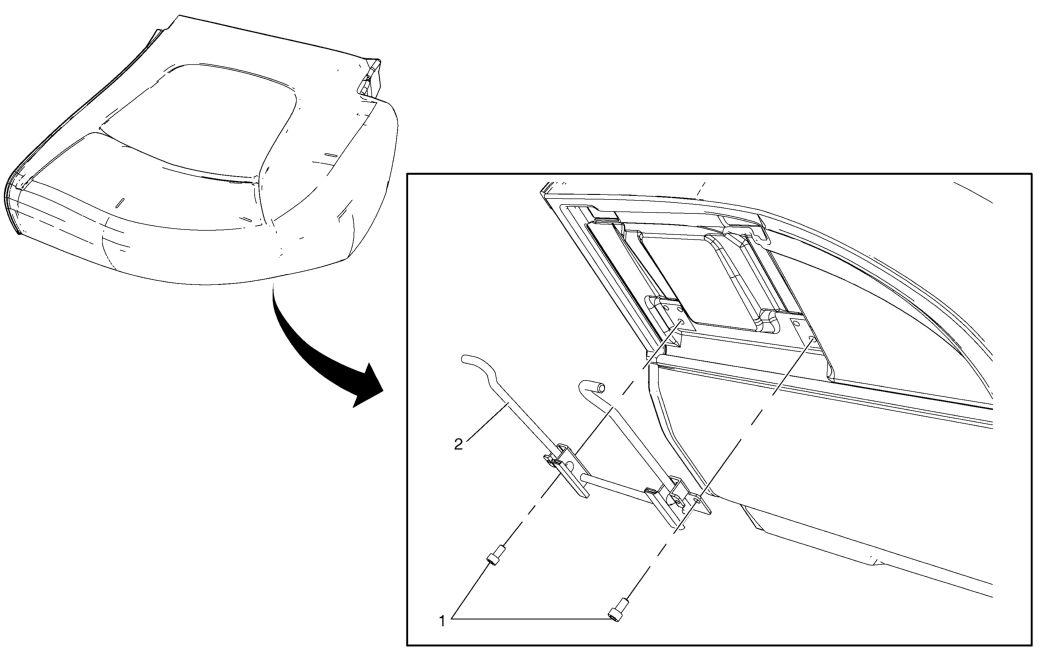

Fig 1: Rear Seat Cushion Hinge Pivot

Courtesy of GENERAL MOTORS COMPANY

Rear Seat Cushion Hinge Pivot Replacement

Callout	Component Name
Preliminary Procedure  Remove the rear seat. Refer to Rear Seat Cushion Removal and Installation .
1	Rear Seat Cushion Hinge Pivot Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  30.5 (22.5 lb ft)
2	Rear Seat Cushion Hinge Pivot
