Rear Side Door Weatherstrip Replacement - Door Side

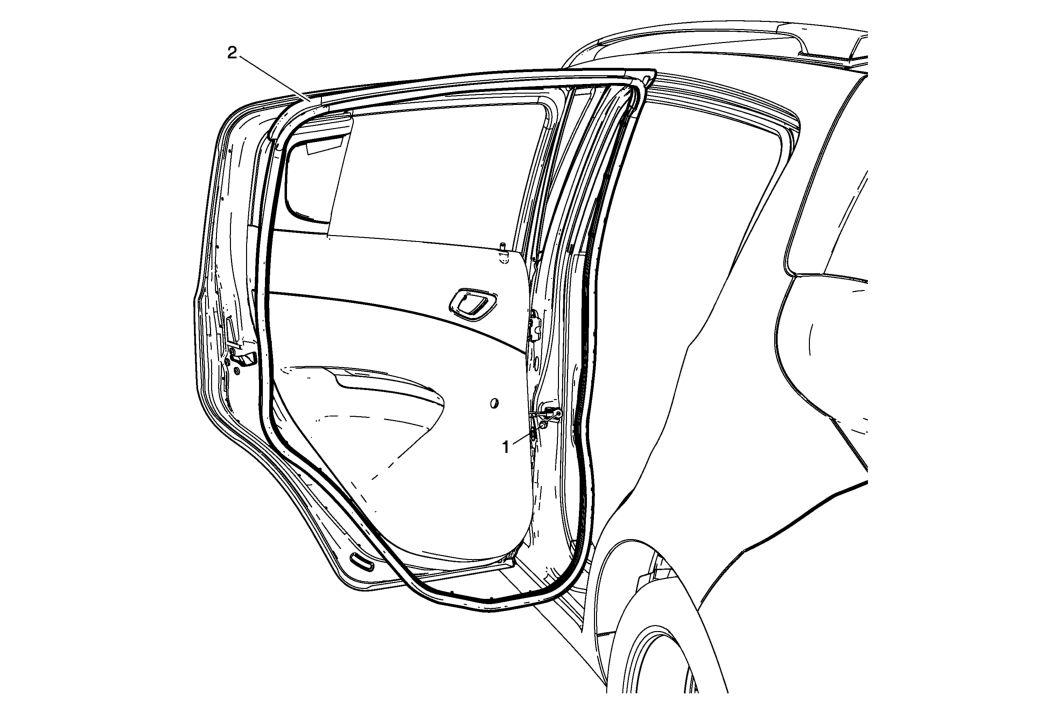

Fig 1: Rear Side Door Weatherstrip - Door Side
GM2327724Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Weatherstrip Replacement - Door Side

Callout Component Name
1 Rear Side Door Check Link Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
28 N.m (21 lb ft)
2 Rear Side Door Weatherstrip - Door Side
Procedure
Unclip weatherstrip from front side door.
