Rear Side Door Upper Hinge and Lower Hinge Replacement
Rear Side Door Upper Hinge and Lower Hinge Replacement

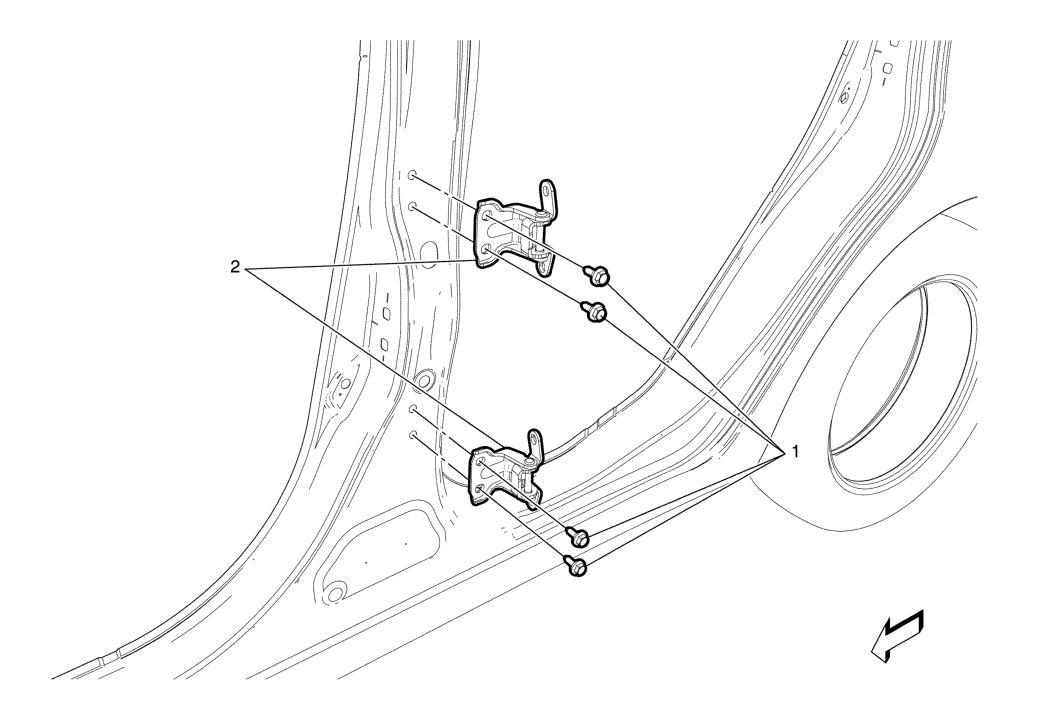

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear side door. Refer to Rear Side Door Replacement . |
|
| 1 | Rear Side Door Hinge Bolt (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 30 N.m (22 lb ft) |
| 2 | Rear Side Door Hinge Procedure Adjust rear side door as needed. Refer to Rear Side Door Adjustment . |
