Fuel Tank Filler Door Replacement

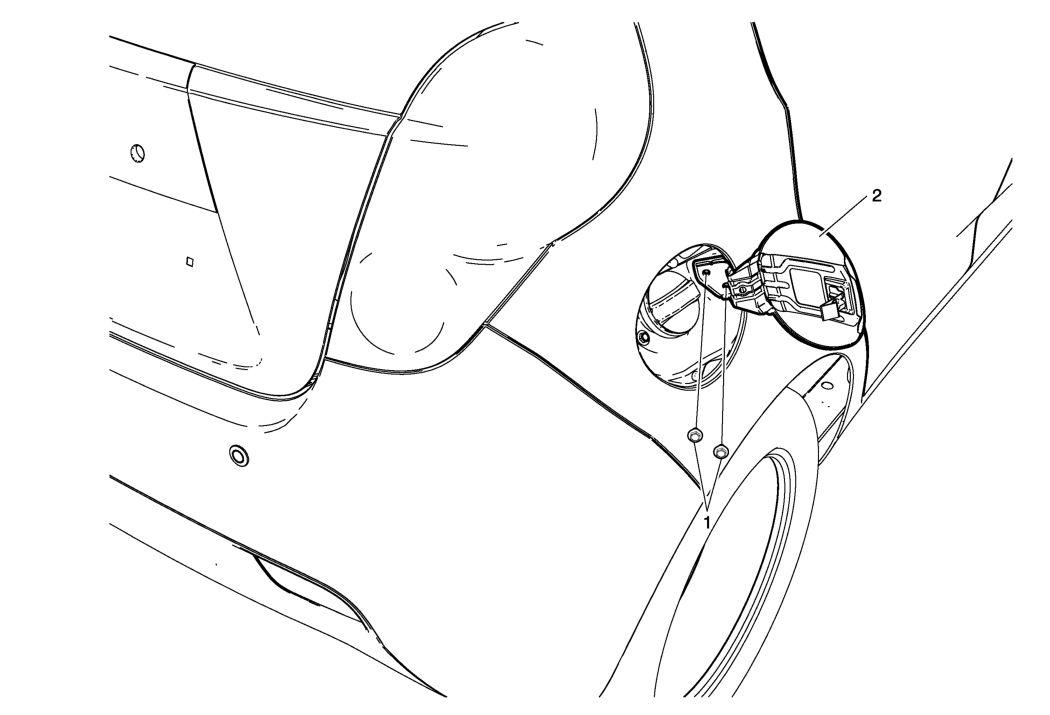

Fig 1: Fuel Tank Filler Door
GM2327735Courtesy of GENERAL MOTORS COMPANY
Fuel Tank Filler Door Replacement

Callout Component Name
1 Fuel Tank Filler Door Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
5.5 N.m (49 lb in)
2 Fuel Tank Filler Door
