Front Side Door Weatherstrip Replacement - Door Side

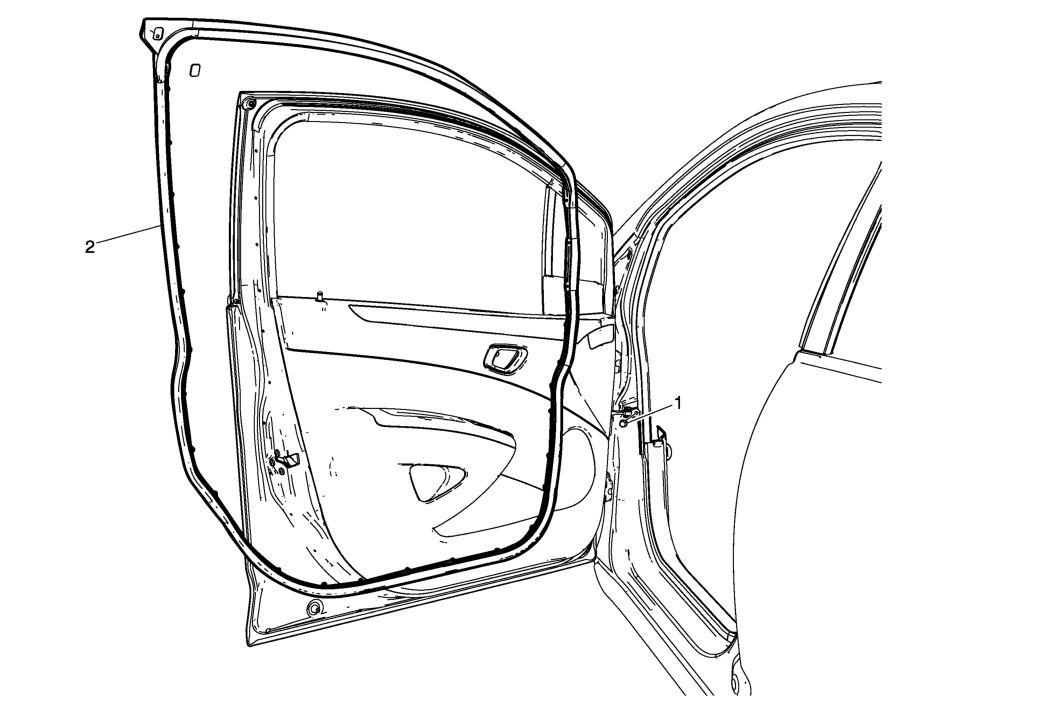

Fig 1: Front Side Door Weatherstrip -- Door Side
GM2327727Courtesy of GENERAL MOTORS COMPANY
Front Side Door Weatherstrip Replacement - Door Side

Callout Component Name
1 Front Side Door Check Link Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
28 N.m (21 lb ft)
2 Front Side Door Weatherstrip - Door Side
Procedure
Unclip weatherstrip from front side door.
