Rear Bumper Lower Fascia Replacement

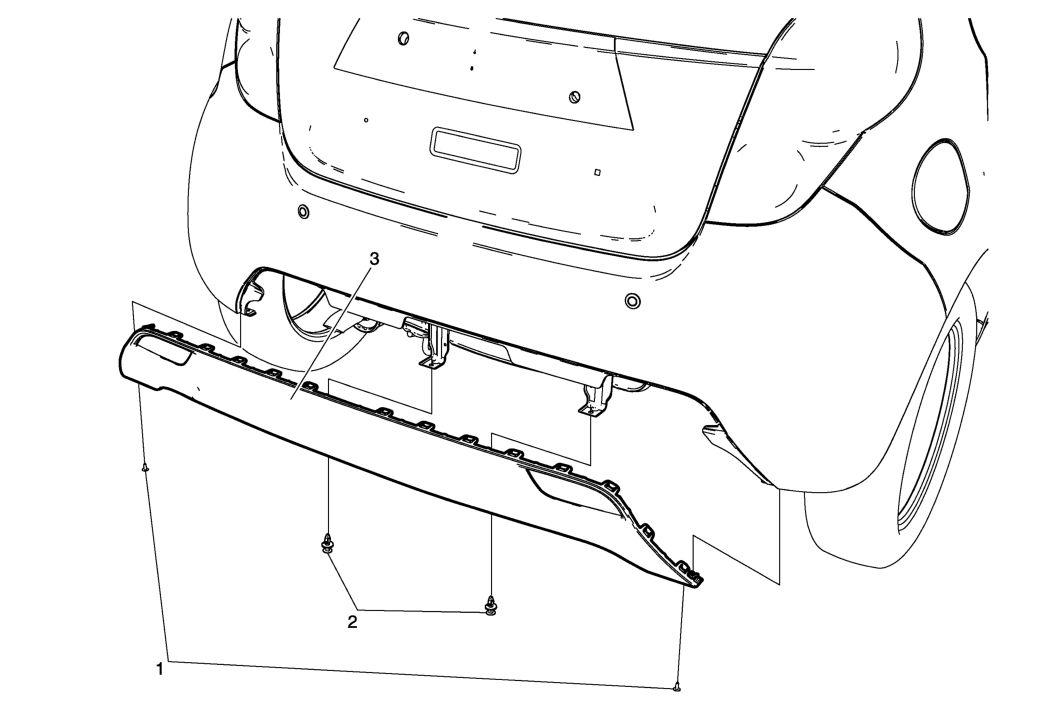

Fig 1: Rear Bumper Lower Fascia
GM2327712Courtesy of GENERAL MOTORS COMPANY
Rear Bumper Lower Fascia Replacement

Callout Component Name
1 Rear Bumper Lower Fascia Screw (Qty: 2)
2 Rear Bumper Fascia Retainer (Qty: 2)
3 Rear Bumper Lower Fascia

Procedure

  1. Unclip from rear bumper fascia.
  2. Pull forward to remove the rear bumper lower fascia.
  3. Transfer parts as needed.
