Rear Bumper Fascia Lower Skid Plate Replacement

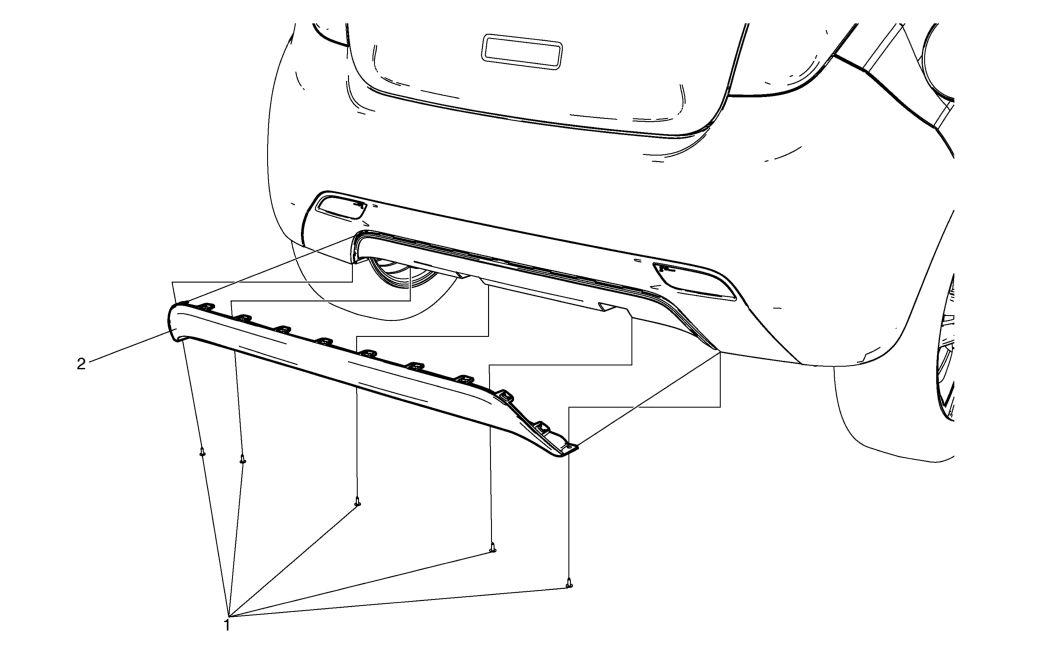

Fig 1: Rear Bumper Fascia Lower Skid Plate
GM2754157Courtesy of GENERAL MOTORS COMPANY
Rear Bumper Fascia Lower Skid Plate Replacement

Callout Component Name
1 Rear Bumper Fascia Lower Skid Plate Screw (Qty: 5)
2 Rear Bumper Fascia Lower Skid Plate
