Front Bumper Fascia Opening Lower Cover Replacement
Front Bumper Fascia Opening Lower Cover Replacement

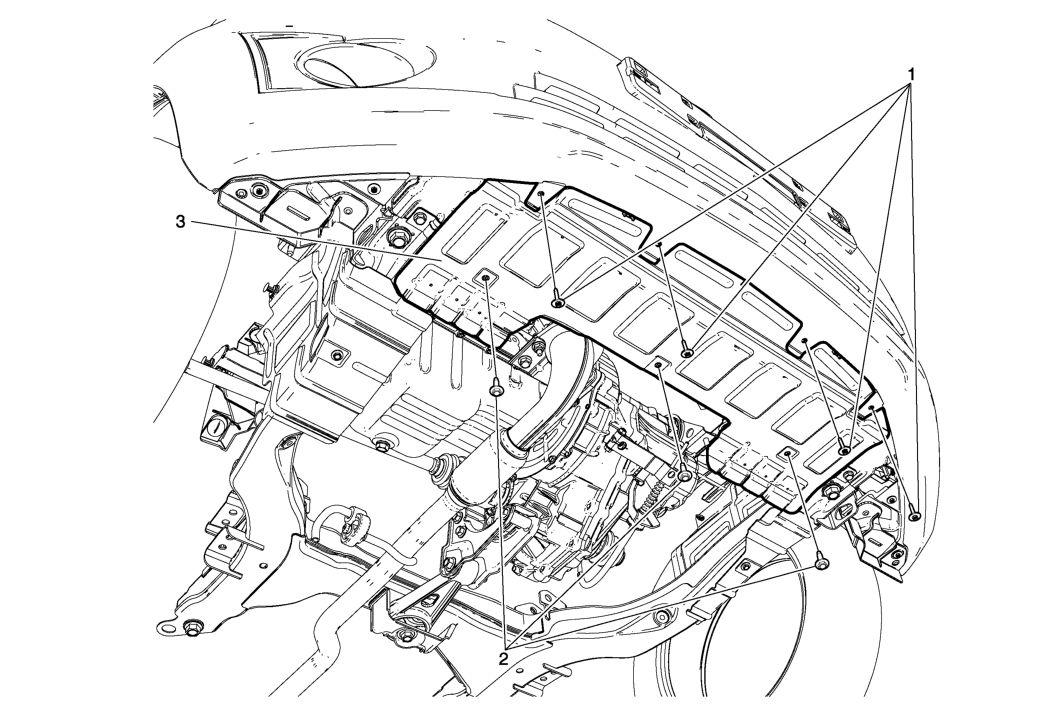

| Callout | Component Name |
|---|---|
| 1 | Front Bumper Fascia Screw (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 1.8 N.m (16 lb in) |
| 2 | Front Bumper Opening Lower Bolt (Qty: 3) Tighten 9 N.m (80 lb in) |
| 3 | Front Bumper Fascia Opening Lower Cover |
