Intermediate Steering Shaft Lower Seal Replacement

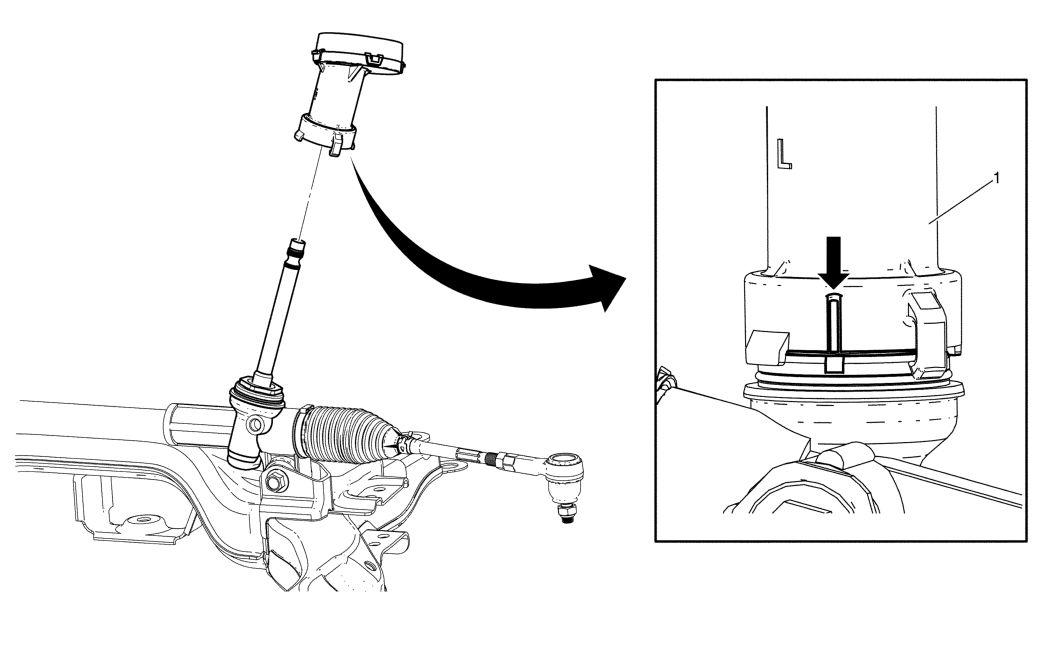

Fig 1: Intermediate Steering Shaft Lower Seal

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the intermediate steering shaft upper seal. Refer to Intermediate Steering Shaft Upper Seal Replacement . Lower the front suspension frame and steering gear to get an access to remove the intermediate steering shaft lower seal. Refer to Steering Gear Replacement (Electric Power Steering) .
1	Intermediate Steering Shaft Lower Seal Procedure When installing the intermediate steering shaft lower seal, align the nose of the intermediate steering shaft lower seal to the groove on the power steering gear.

Callout

Component Name

Preliminary Procedure

Remove the intermediate steering shaft upper seal. Refer to Intermediate Steering Shaft Upper Seal Replacement .
Lower the front suspension frame and steering gear to get an access to remove the intermediate steering shaft lower seal. Refer to Steering Gear Replacement (Electric Power Steering) .

Intermediate Steering Shaft Lower Seal
Procedure
When installing the intermediate steering shaft lower seal, align the nose of the intermediate steering shaft lower seal to the groove on the power steering gear.
