Rear Seat Back Cushion Latch Replacement

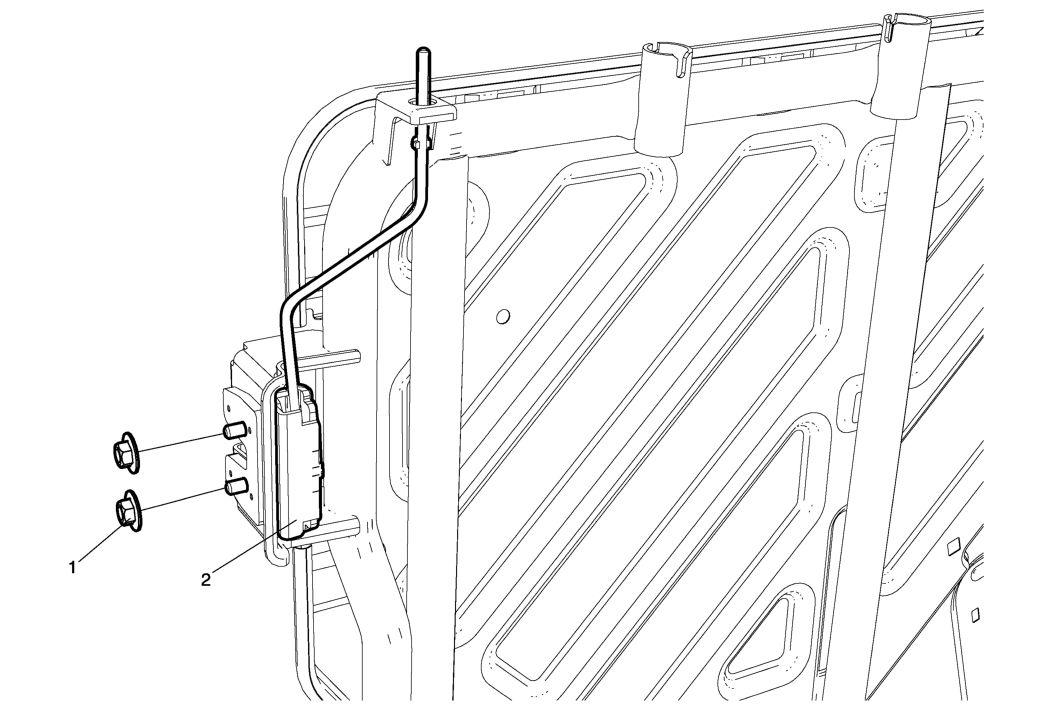

Fig 1: Rear Seat Back Cushion Latch

Courtesy of GENERAL MOTORS COMPANY

Rear Seat Back Cushion Latch Replacement

Callout	Component Name
Preliminary Procedure  Remove rear seat back cushion pad. Refer to Rear Seat Back Cushion Pad Replacement .
1	Rear Seat Back Cushion Latch Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  11 N.m (97 lb in)
2	Rear Seat Back Cushion Latch
