Driver or Passenger Seat Head Restraint Replacement

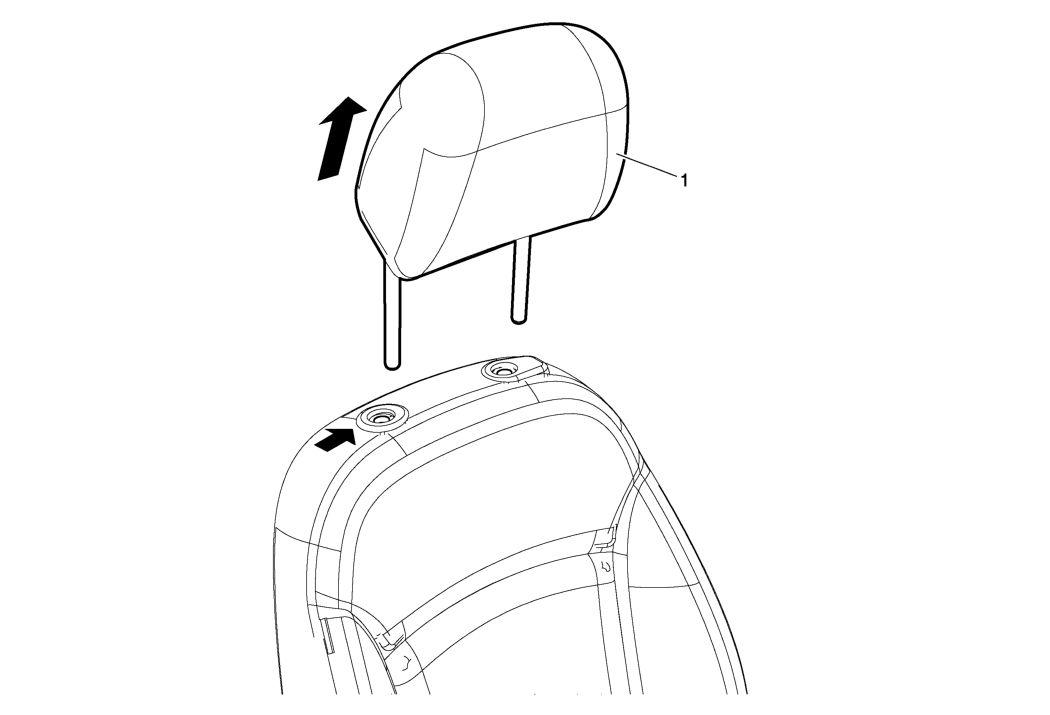

Fig 1: Front Seat Head Restraint
GM2309327Courtesy of GENERAL MOTORS COMPANY
Driver or Passenger Seat Head Restraint Replacement

Callout Component Name
1 Front Seat Head Restraint

Procedure

  1. Raise the headrest to the full upward position.
  2. Depress the flush button on the head restraint guide.
  3. Remove the head restraint by pulling up on the restraint.
