Controls and Indicators Wiring Schematics

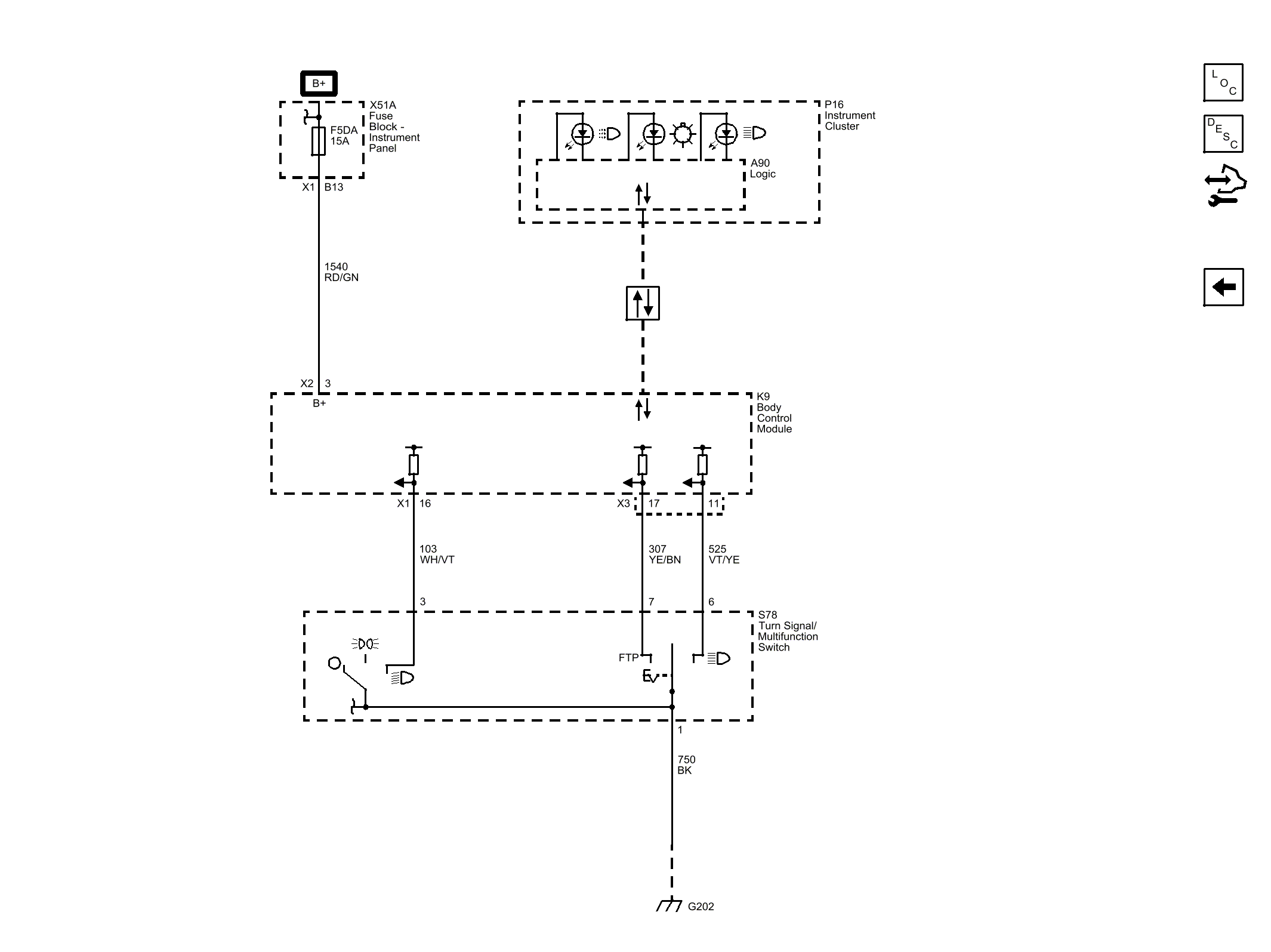

Fig 1: Controls and Indicators Wiring Schematic

GM3273668

Courtesy of GENERAL MOTORS COMPANY
