Luggage Carrier Replacement

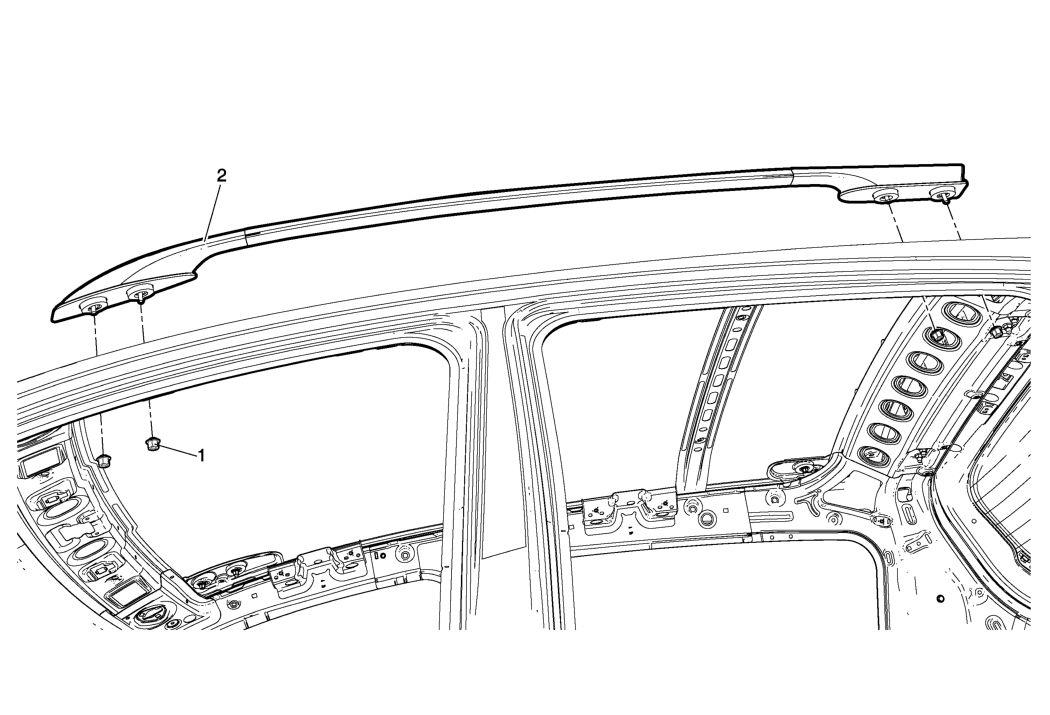

Fig 1: Luggage Carrier
GM2309095Courtesy of GENERAL MOTORS COMPANY
Luggage Carrier Replacement

Callout Component Name
Preliminary Procedure
Remove the headlining trim panel. Refer to Headlining Trim Panel Replacement .
1 Luggage Carrier Side Rail Mounting Nut (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Luggage Carrier Side Rail
