Rear Seat Cup Holder Replacement

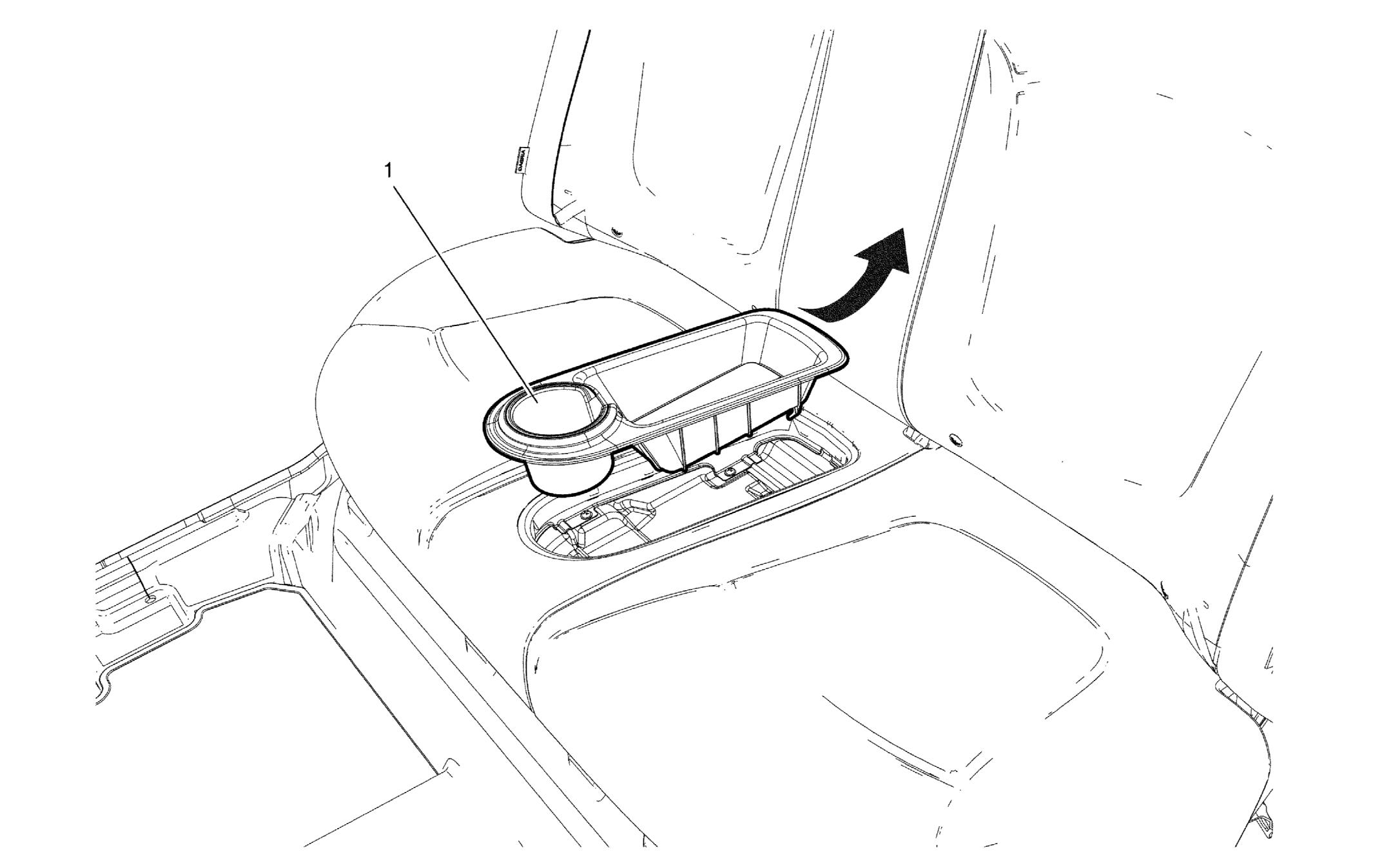

Fig 1: Rear Seat Cup Holder
GM2754243Courtesy of GENERAL MOTORS COMPANY
Rear Seat Cup Holder Replacement

Callout Component Name
1 Rear Seat Cup Holder

Procedure

  1. Using flat-bladed tool, pull the rear portion of the rear seat cup holder up.
  2. Remove the cup holder following the arrow.
