Liftgate Weatherstrip Replacement

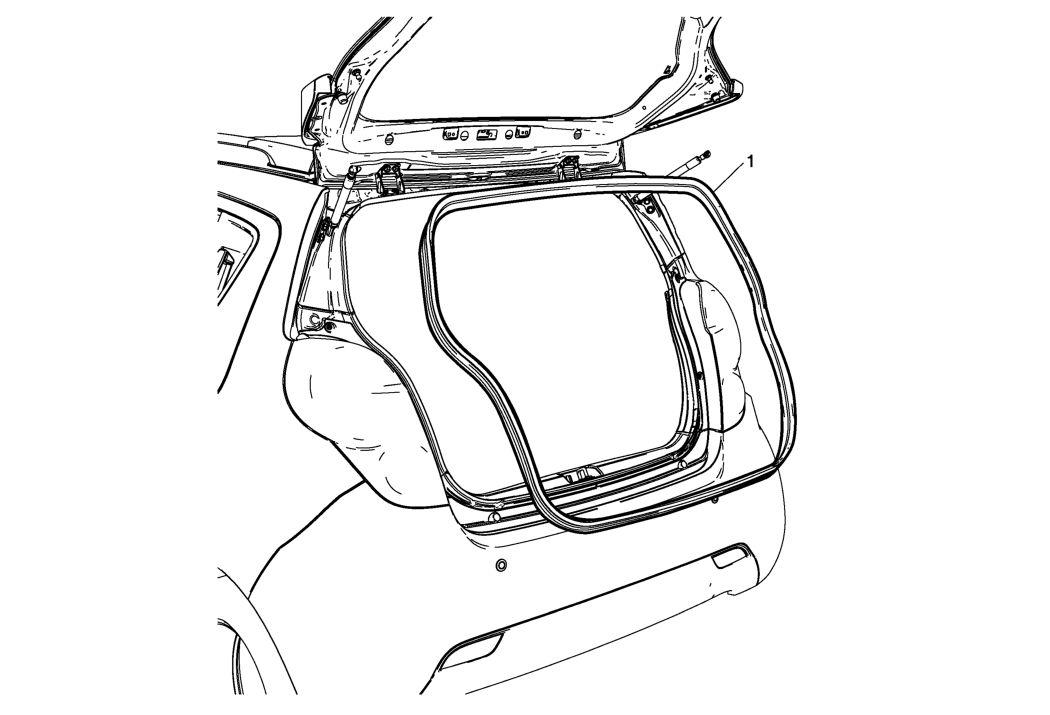

Fig 1: Liftgate Weatherstrip
GM2327725Courtesy of GENERAL MOTORS COMPANY
Liftgate Weatherstrip Replacement

Callout Component Name
1 Liftgate Weatherstrip

Procedure

  1. Start at the upper corner of the liftgate opening and pull the weatherstrip away from the liftgate opening flange.
  2. Position the weatherstrip in the upper corner of the liftgate opening.
  3. Working downward along the edge, install the weatherstrip on the liftgate opening flange ensuring that the carrier is fully seated in the corners.
  4. Using a rubber mallet, ensure that the weatherstrip is seated on the entire liftgate opening flange.
