Doors, Seats and Center Console Wiring Schematics

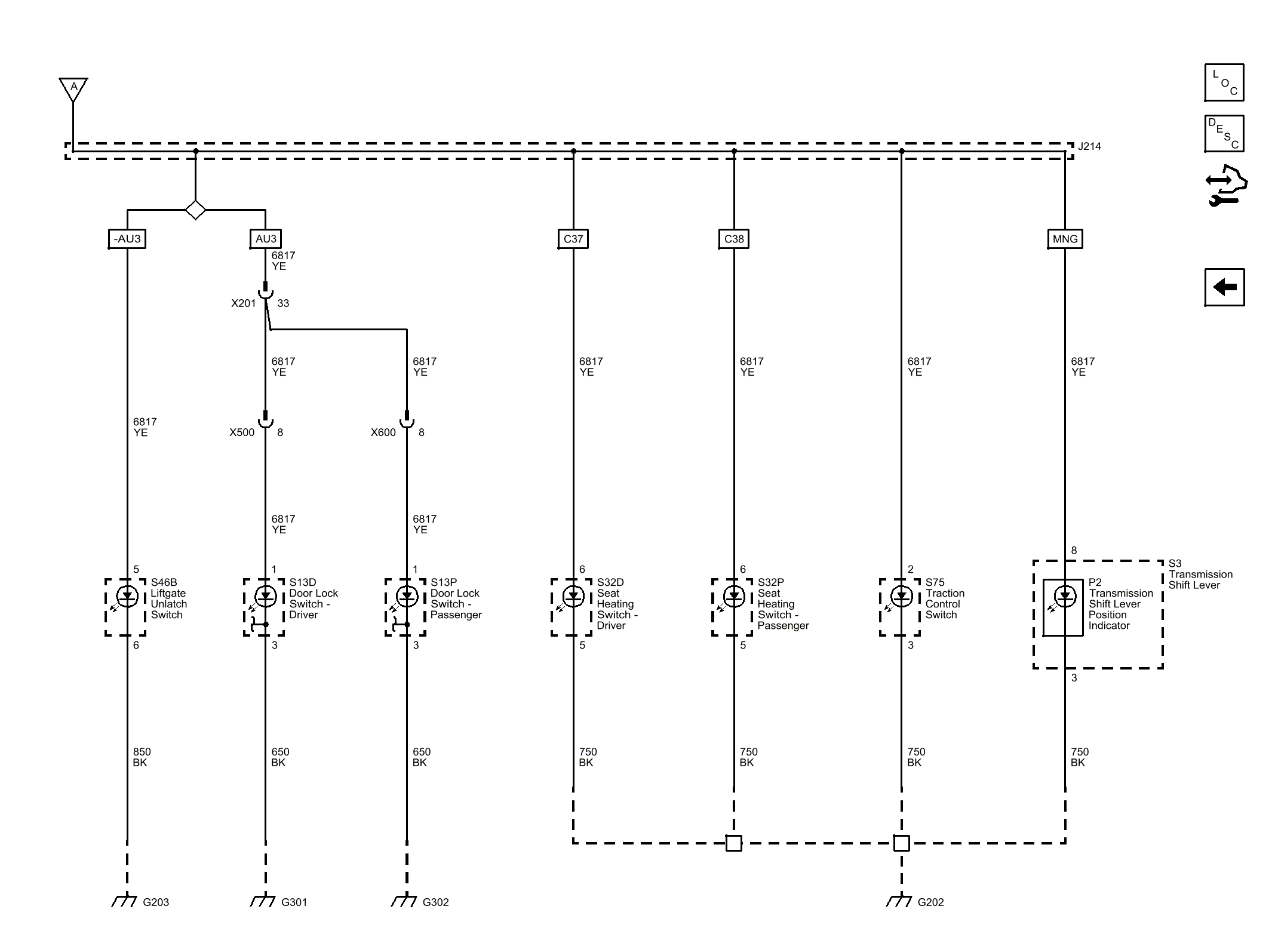

Fig 1: Doors, Seats and Center Console Wiring Schematic
GM3273680Courtesy of GENERAL MOTORS COMPANY
