Tail, Stop, and Rear Turn Signal Lamps Wiring Schematics

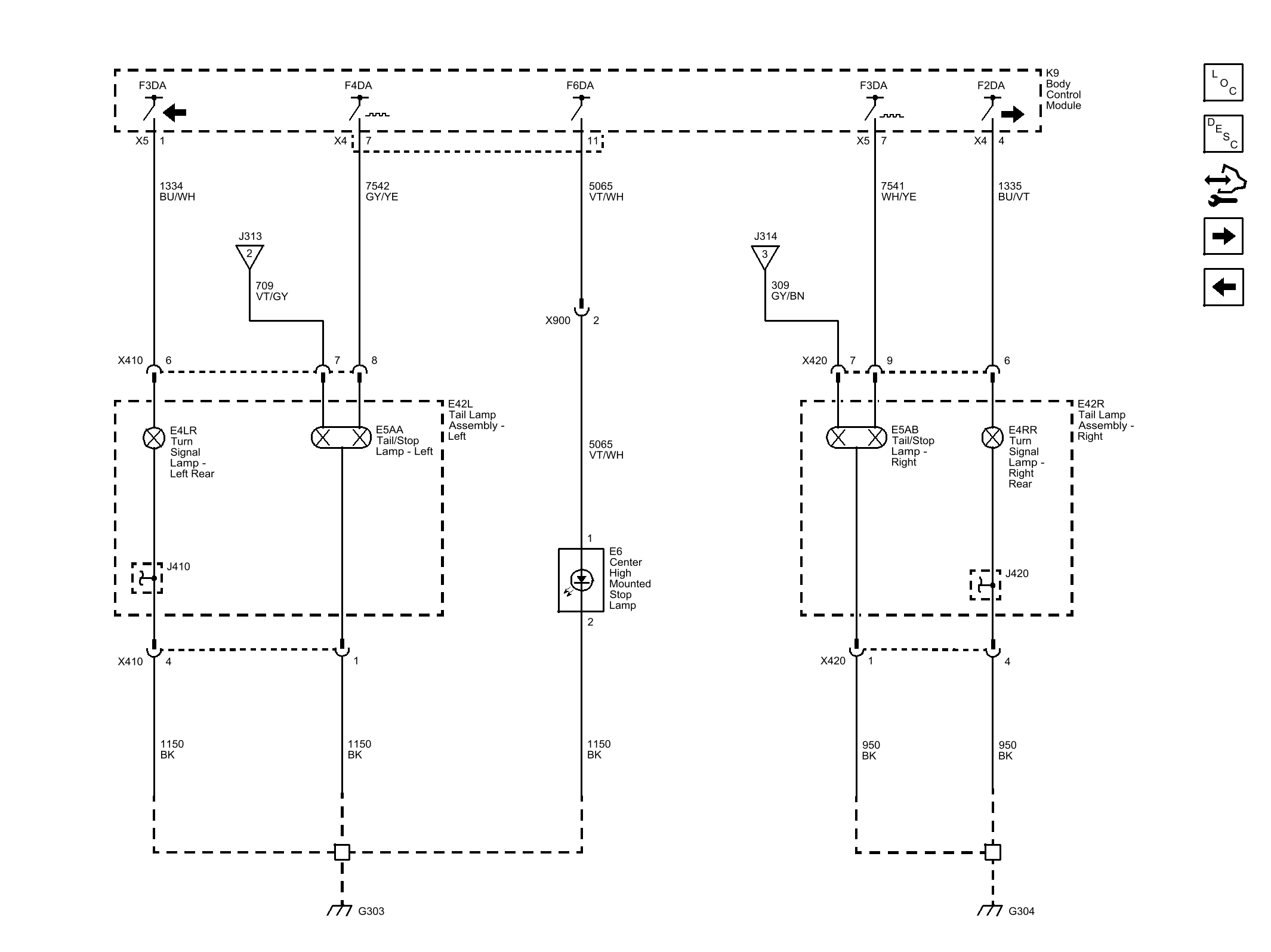

Fig 1: Tail, Stop, and Rear Turn Signal Lamps Wiring Schematic
GM3273672Courtesy of GENERAL MOTORS COMPANY
