Park, Turn, Hazard, Brake Lamp Controls and Indicators Wiring Schematics

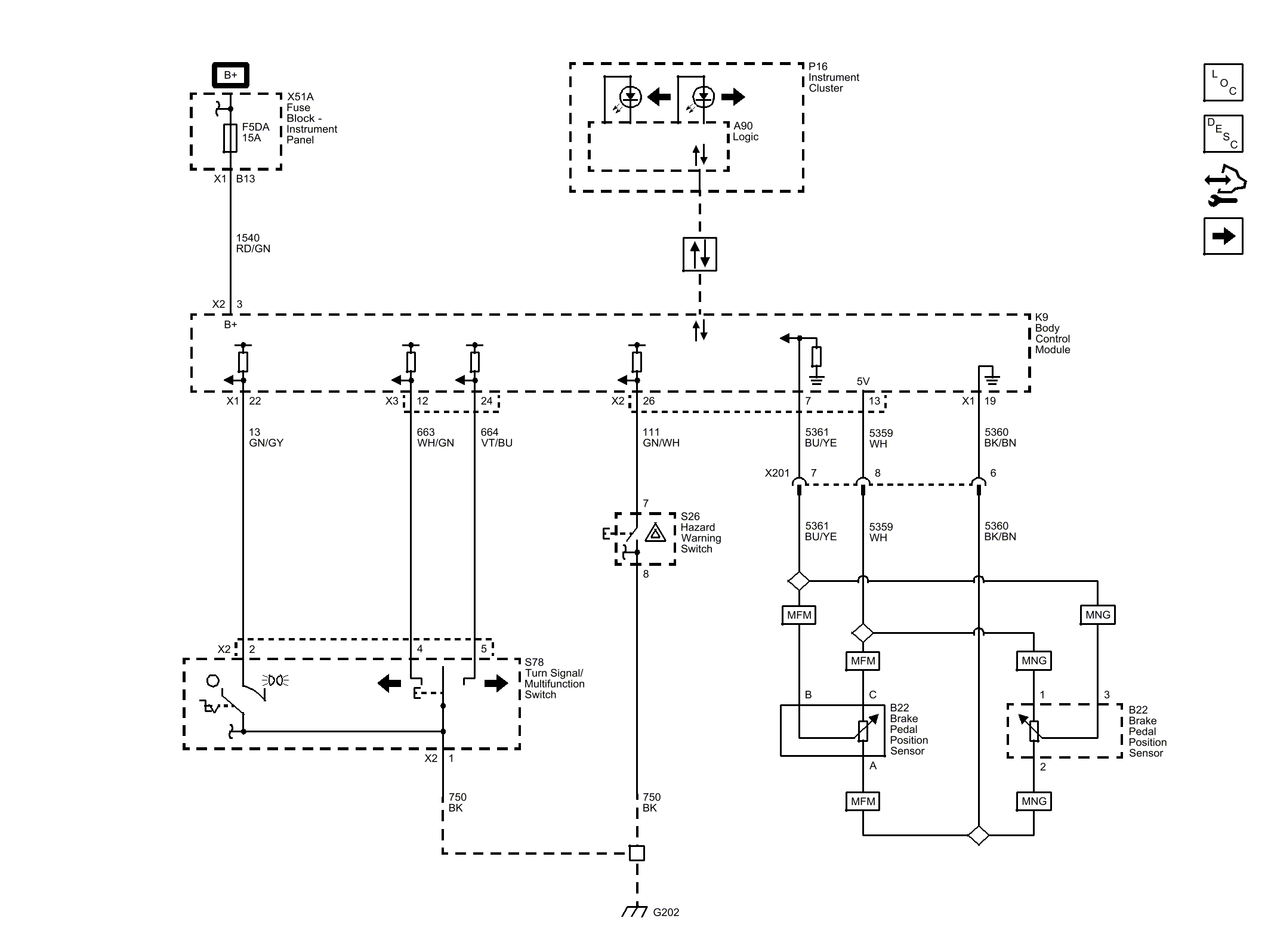

Fig 1: Park, Turn, Hazard, Brake Lamp Controls and Indicators Wiring Schematic

GM3273670

Courtesy of GENERAL MOTORS COMPANY
