Park Lamps and Front Turn Signal Lamps Wiring Schematics

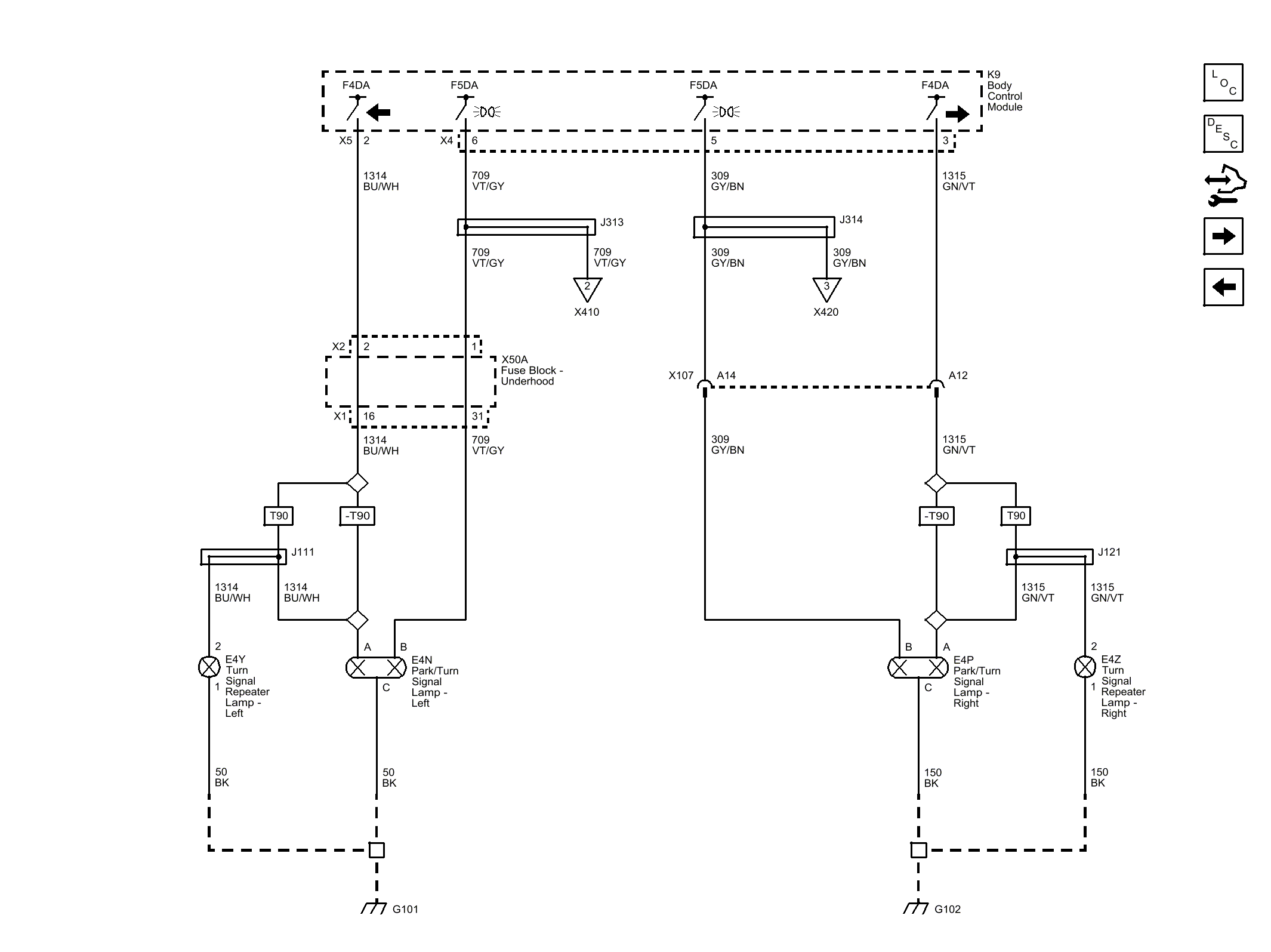

Fig 1: Park Lamps and Front Turn Signal Lamps Wiring Schematic

GM3273671

Courtesy of GENERAL MOTORS COMPANY
