License and Backup Lamps Wiring Schematics

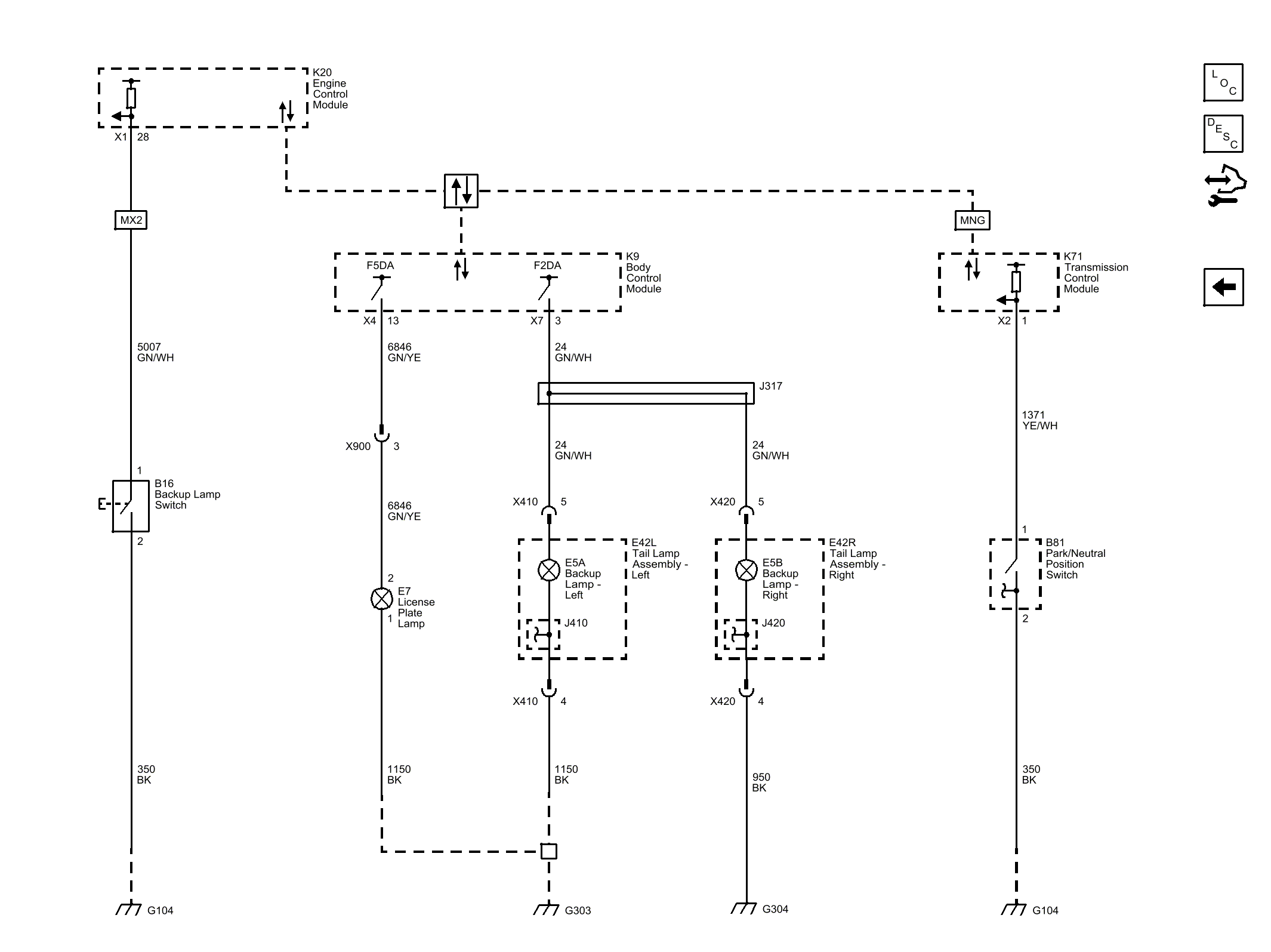

Fig 1: License and Backup Lamps Wiring Schematic

GM3273673

Courtesy of GENERAL MOTORS COMPANY
