Power, Ground, Data Communication and Indicators Wiring Schematics

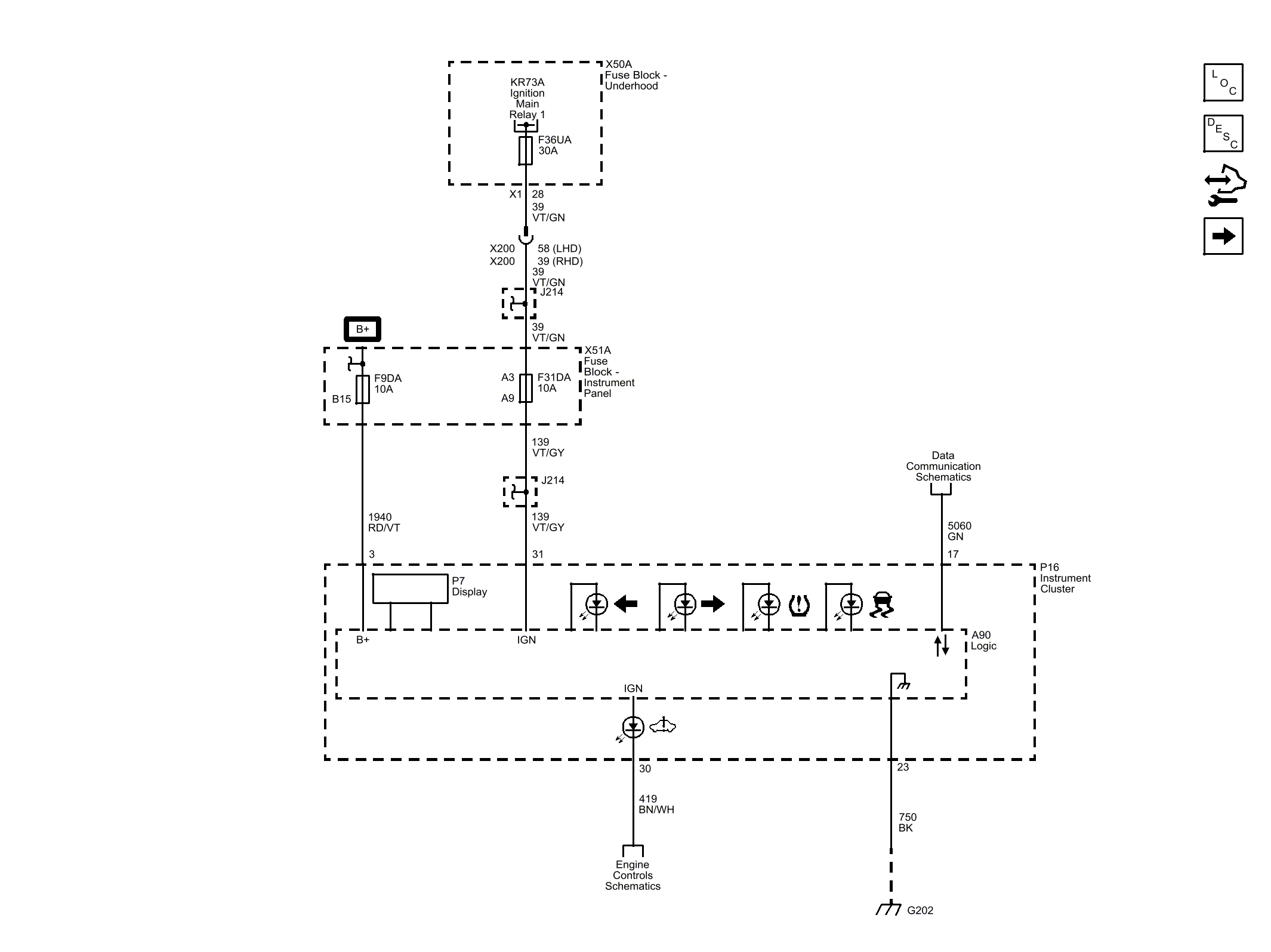

Fig 1: Power, Ground, Data Communication and Indicators Wiring Schematic

GM3228695

Courtesy of GENERAL MOTORS COMPANY
