Battery Charge Indicator Replacement

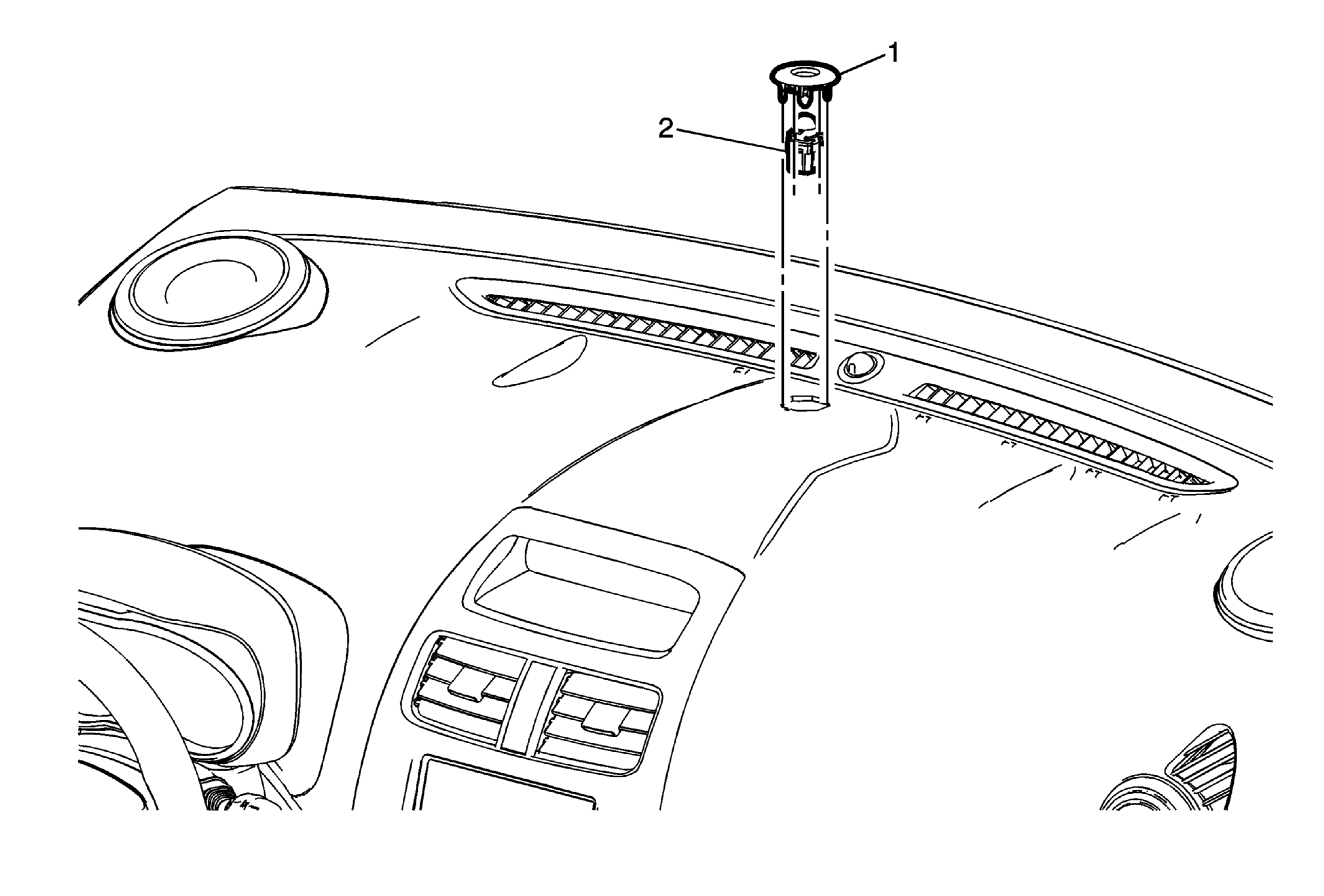

Fig 1: Battery Charge Indicator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Electronic Suspension Switch Bezel Procedure Using a small flat bladed tool, gently disengage tabs on bezel.
2	Battery Charge Indicator Procedure Twist indicator to release from bezel. Disconnect electrical connector.

Callout

Component Name

Electronic Suspension Switch Bezel
Procedure
Using a small flat bladed tool, gently disengage tabs on bezel.

Battery Charge Indicator

Procedure
