Rear Side Door Check Replacement

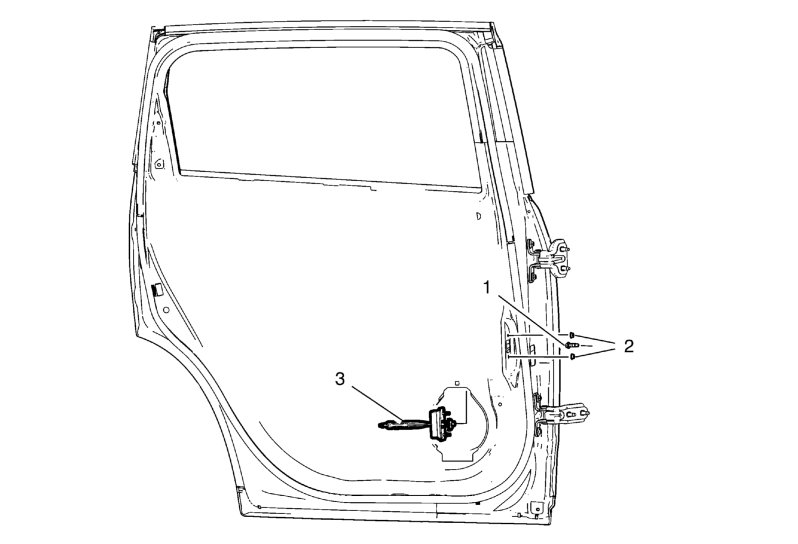

Fig 1: Rear Side Door Check
GM2449888Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Check Replacement

Callout Component Name

Preliminary Procedures

  1. Remove rear side door trim. Refer to Rear Side Door Trim Replacement .
  2. Remove radio rear side door speaker. Refer to Radio Rear Side Door Speaker Replacement .
1 Rear Side Door Check Link Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
25 N.m (18 lb ft)
2 Rear Side Door Check Link Nut (Qty: 2)
Tighten
9 N.m (80 lb in)
3 Rear Side Door Check
Procedure
Remove the rear side door check through the radio speaker cut out.
