Liftgate Hinge Replacement

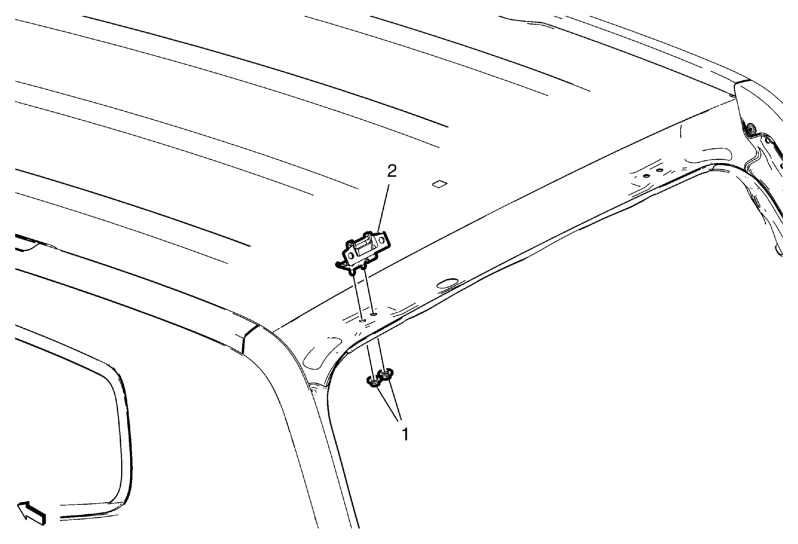

Fig 1: Liftgate Hinge
GM2373520Courtesy of GENERAL MOTORS COMPANY
Liftgate Hinge Replacement

Callout Component Name
Preliminary Procedures
Remove the liftgate. Refer to Liftgate Replacement .
1 Liftgate Hinge Nut (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
25 N.m (18 lb ft)
2 Liftgate Hinge
