Hood Hinge Replacement
Hood Hinge Replacement

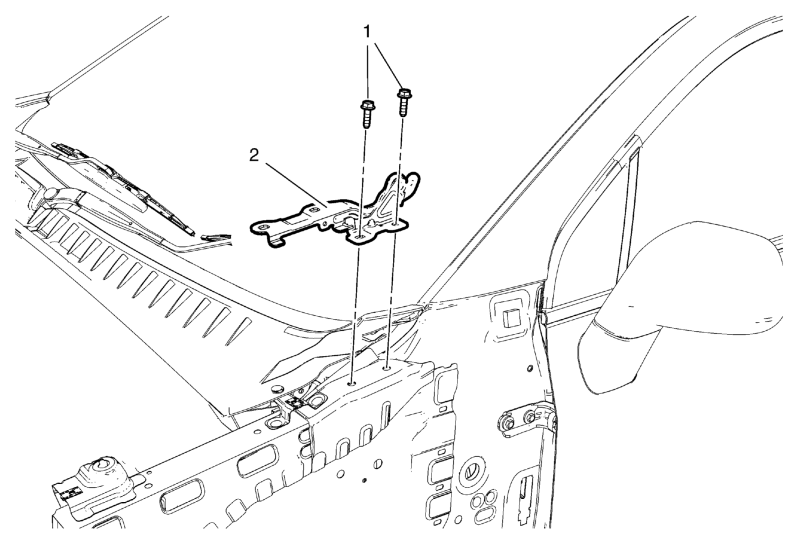

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the hood. Refer to Hood Replacement . |
|
| 1 | Hood Hinge Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 26 N.m (19 lb ft) |
| 2 | Hood Hinge |
