Driver Information Display Bezel Replacement

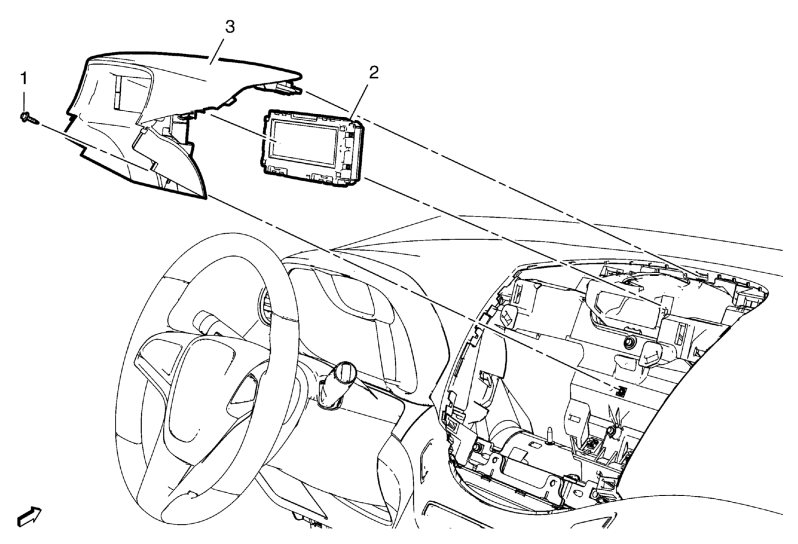

Fig 1: Driver Information Display Bezel
GM3707193Courtesy of GENERAL MOTORS COMPANY
Driver Information Display Bezel Replacement

Callout Component Name

Preliminary Procedures

  1. Instrument Panel Center Upper Molding Replacement
  2. Radio Control Switch Replacement
1 Driver Information Display Bezel Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
1.6 (14 lb in)
2 Driver Information Display
Procedure
Disconnect the electrical connector.
3 Driver Information Display Bezel
