Front Bumper Fascia Removal and Installation

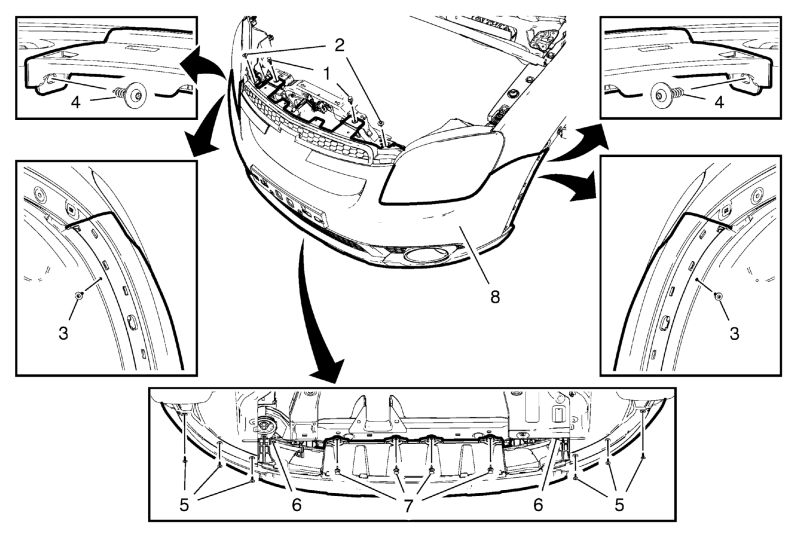

Fig 1: Front Bumper Fascia & Mounting Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front fender wheel opening molding. Refer to Front Fender Wheel Opening Molding Replacement . Remove the radiator opening upper cover. Refer to Front Opening Upper Cover Replacement .
1	Front Bumper Fascia Upper Retainer (Qty: 2)
2	Front Bumper Fascia Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
3	Front Wheelhouse Liner Bolt (Qty: 2)
4	Front Wheelhouse Liner Bolt (Qty: 2) Procedure To remove the bolts, partially loosen the front wheelhouse liner.
5	Front Wheelhouse Liner Bolt (Qty: 6)
6	Front Bumper Lower Stiffener Bolt Tighten 25 N.m (18 lb ft)
7	Front Bumper Fascia Lower Retainer (Qty: 4)
8	Front Bumper Fascia Procedure Insert flat bladed plastic trim tool to release the retainer fo the front bumper fascia guides. Use care, fascia will rip apart if forced. Unclip from front bumper fascia guides. Pull forward to remove the front bumper fascia. Disconnect any electrical connectors.
