Power, Ground, Serial Data, and Indicators

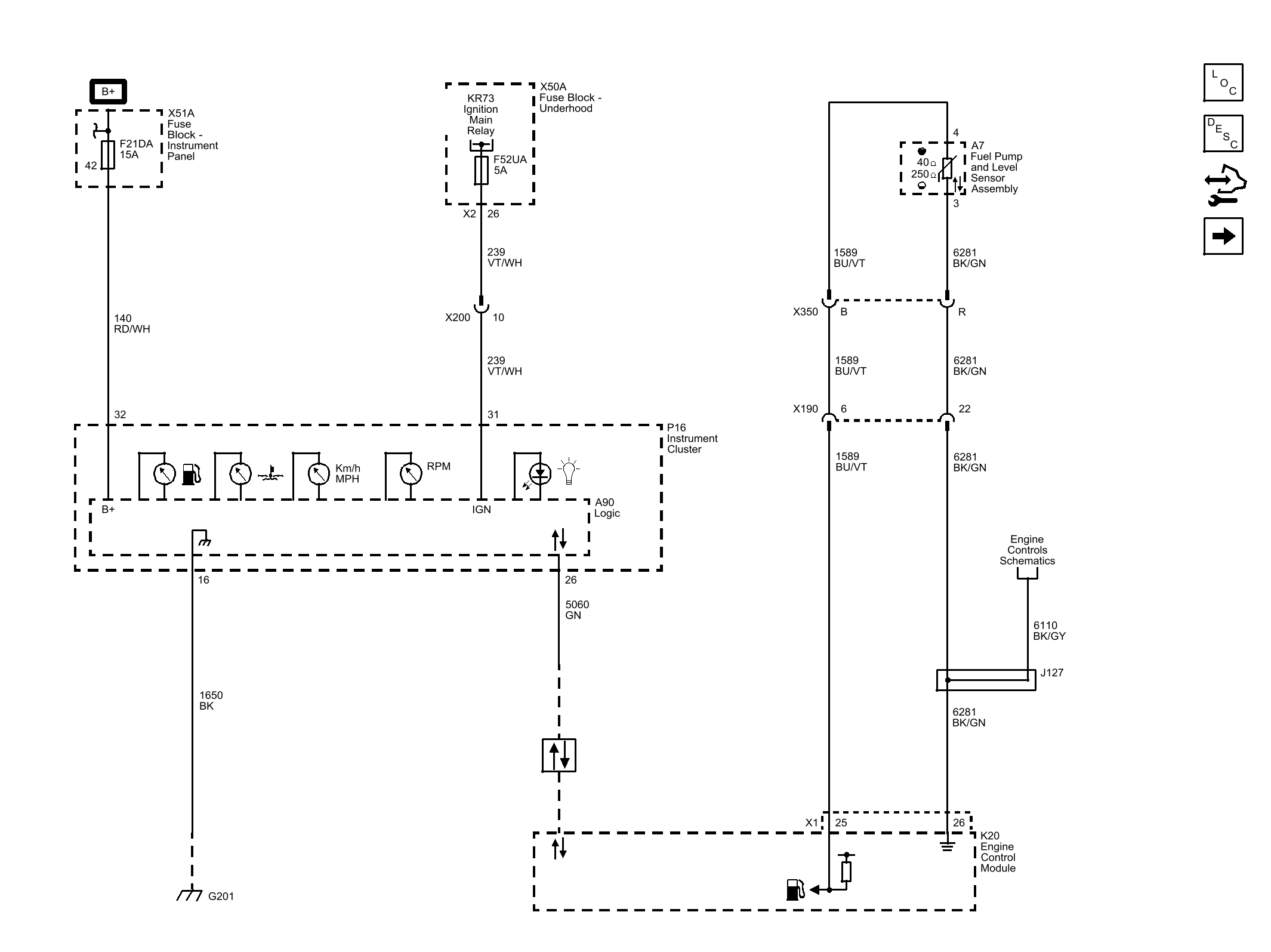

Fig 1: Power, Ground, Serial Data, and Indicators Wiring Schematics

GM3254723

Courtesy of GENERAL MOTORS COMPANY
