Air Temperature and Driver Information Center

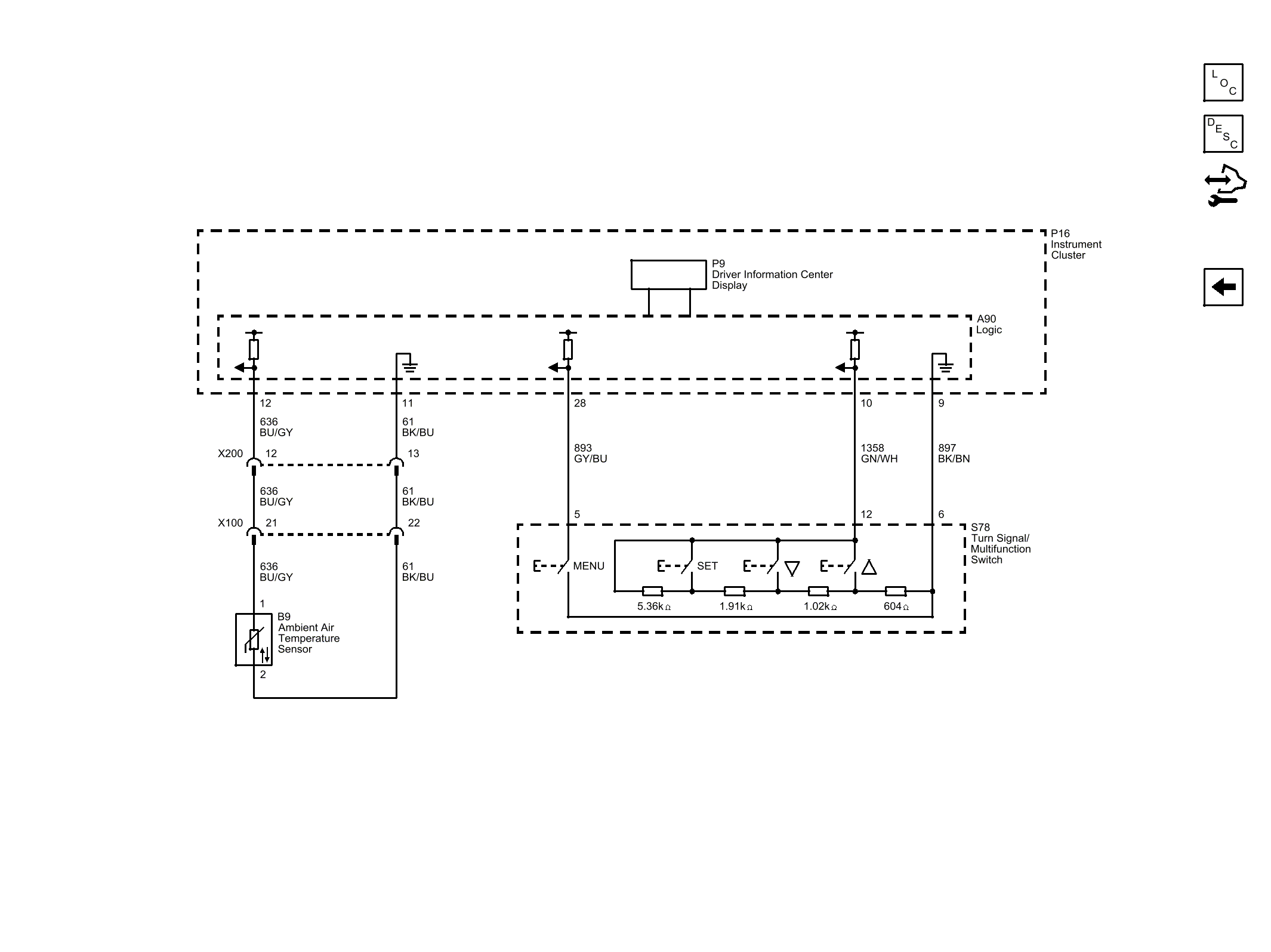

Fig 1: Air Temperature and Driver Information Center Wiring Schematics

GM3254728

Courtesy of GENERAL MOTORS COMPANY
