Reverse - Gen 3 - A/T System Hydraulic Diagram

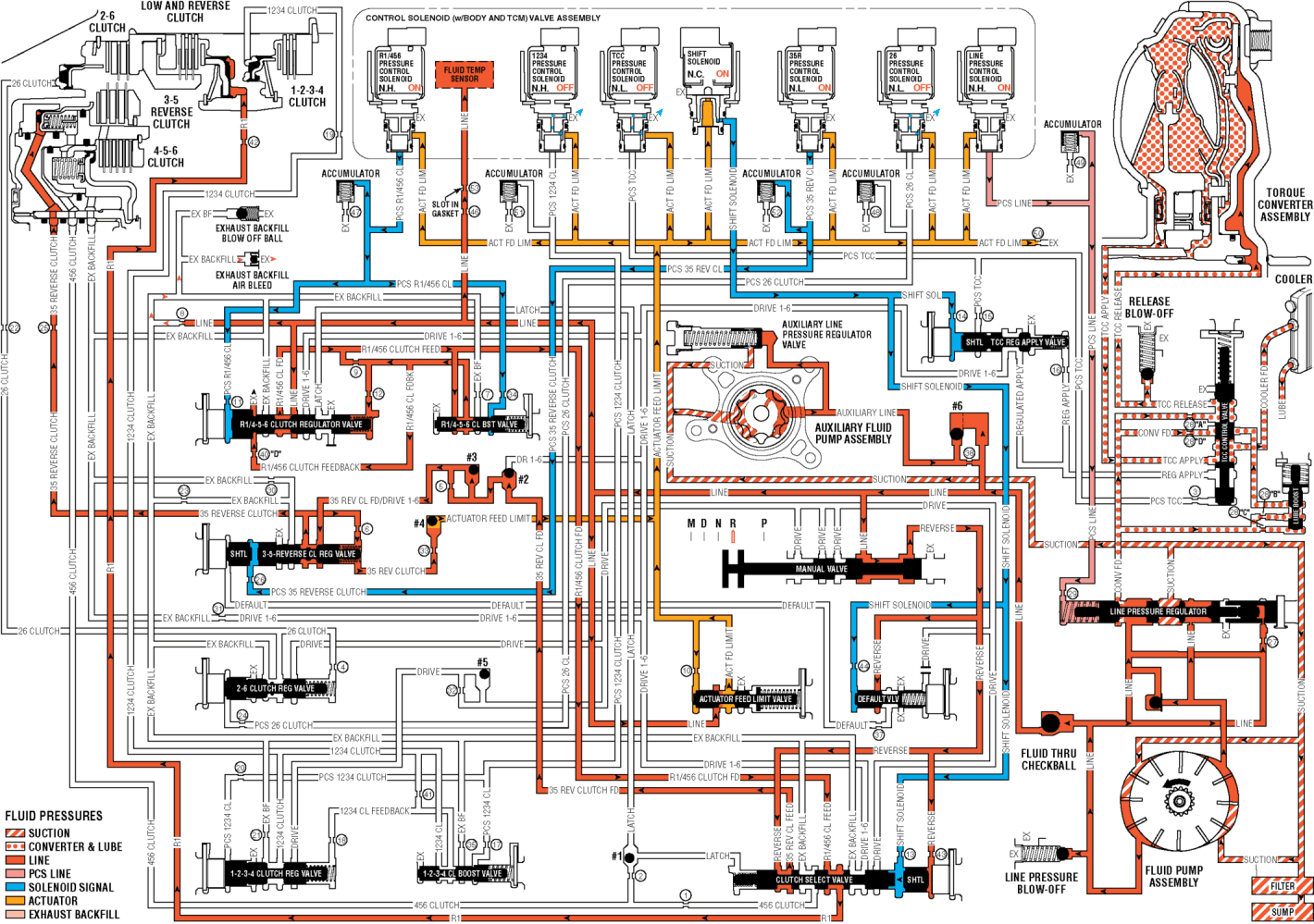

Fig 1: Reverse - Gen 3

GM3277884

Courtesy of GENERAL MOTORS COMPANY
